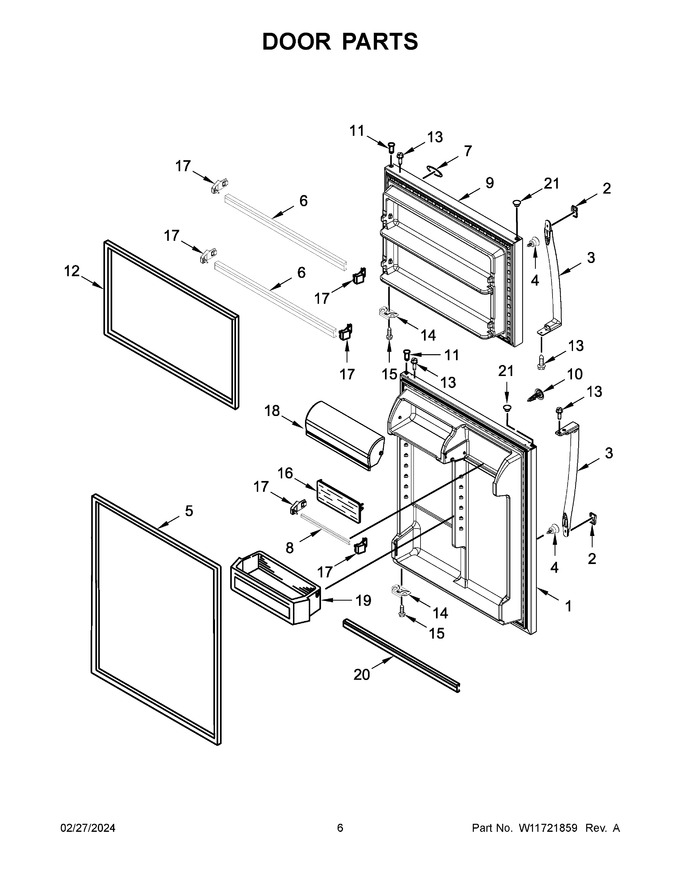

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11023679		Refrigerator Door (includes Door Gasket) (white)   (Replaces: W10599404)				$ 758.35
2	WPW10672338		Handle, Trim (white)   (Replaces: W10672338)			Immediately	$ 29.91
3	WPW10672333		Handle, Door (white)   (Replaces: W10672333)			Immediately	$ 230.40
4	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.55
5	W10860480		Gasket, Door (white)   (Replaces: W11406596)				$ 309.74
6	W11596065		Trim, Door   (Replaces: W11230196)				$ 98.26
7	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 63.13
8	W11678258		Trim, Door   (Replaces: W10720455)				$ 88.14
9	W11023679		Freezer Door (includes Door Gasket) (white)   (Replaces: W10599407)				$ 758.35
10	W10830984		Plug, Hole (white)   (Replaces: W10663736)				$ 8.38
11	WP2314293		Thimble   (Replaces: 2314293)				$ 7.55
12	W10741118		Gasket, Door (white)   (Replaces: W11406593)				$ 332.03
13	WP8281206		Screw   (Replaces: 8281206)				$ 8.37
14	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
15	WP681249		Screw   (Replaces: 489276)			Immediately	$ 8.25
16	WP2188236		Door, Flip Up   (Replaces: 2188236)				$ 64.38
17	WP2156003		Endcap, Trim   (Replaces: 2156003)			Immediately	$ 13.25
18	W11617783		Door, Compartment   (Replaces: W11455931)				$ 76.28
19	W10803530		Bin, Door   (Replaces: W10582649)				$ 75.88
20	W11606660		Trim, Door   (Replaces: W11230195)			Immediately	$ 32.61
21	WP2212648		Plug, Hinge (white)   (Replaces: 2212648)			Immediately	$ 8.19
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11416038		Door Reversal Kit, White Model   (Replaces: W10662124)				$ 83.24
