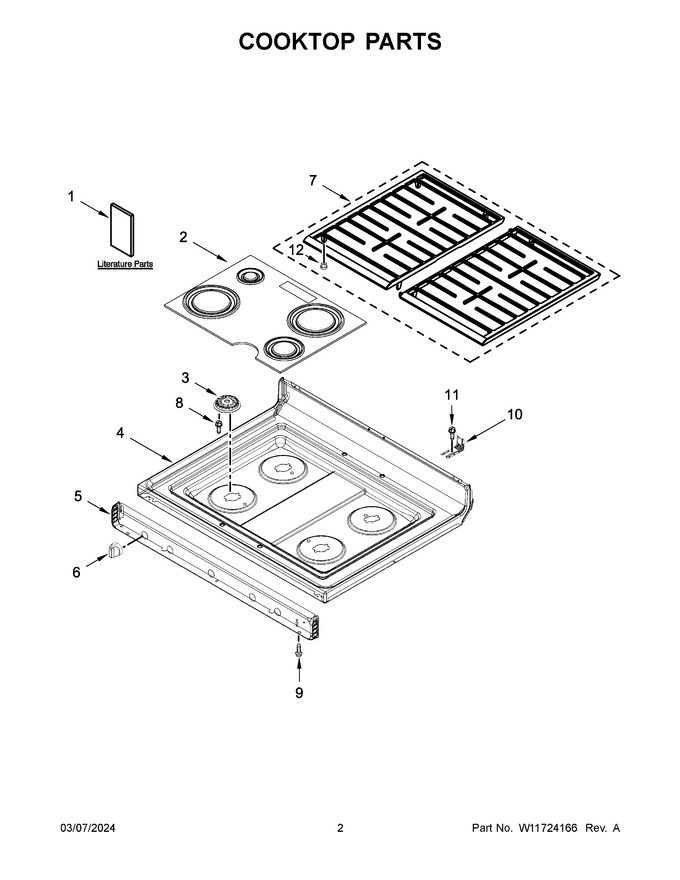

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11624706		Owner's Manual		Appelez-nous	-
2	W11455147		Burner Cap Kit (black (set Of 4))   (Replaces: W11395131)			Immediately	$ 99.73
3	W11435630		Spreader, Flame (left Front And Right Front)   (Replaces: W11352018)			Immediately	$ 82.12
4	W11719803		Cooktop (black)   (Replaces: W11331143)		Appelez-nous	-
5	W11244426		Panel, Manifold (black)   (Replaces: W11089575)		Appelez-nous	-
6	W11620557		Knob, Control (black)   (Replaces: W11510457)		Appelez-nous	-
7	W11832970		Kit, Grate (set Of 2) (grates, Cooktop)   (Replaces: W11603169)				$ 280.94
8	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 14.73
9	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.95
10	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.54
11	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
12	W10919249		Grate, Bumper   (Replaces: W10465081)			Immediately	$ 13.18
1A	W11624074		Quick Start Guide		Appelez-nous	-
1B	W11627309		Tech Sheet		Appelez-nous	-
3A	W11435659		Spreader, Flame (left Rear)   (Replaces: W11352020)				$ 84.85
3B	W11435657		Spreader, Flame (right Rear)   (Replaces: W11352021)				$ 84.43
NI	W11707251		Harness, Bake And Broil   (Replaces: W11448086)				$ 79.95
NI	W11707173		Harness, Main   (Replaces: W11393744)		Appelez-nous	-
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
NI	3196896		Clip, Wire		Appelez-nous	-
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
