SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts

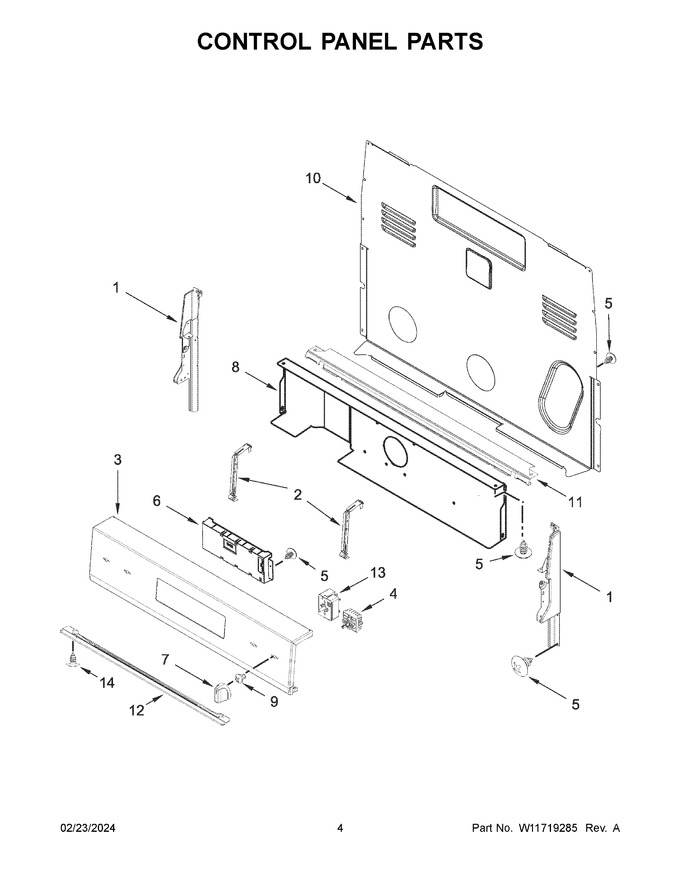

03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11213290		Endcap (black (left))				$ 347.77
2	W11713812		Bracket, Control   (Replaces: W11290750)				$ 30.37
3	W11707070		Console, Assembly (black)   (Replaces: W11299264)				$ 174.53
4	W10857622		Switch, Infinite (left Front And Right Front)   (Replaces: W10437092)			Immediately	$ 211.69
5	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
6	W11696067		Control, Electronic (lcx) (black)   (Replaces: W11637088)		Appelez-nous	-
7	W11707069		Knob (black)   (Replaces: W11331196)			Immediately	$ 22.51
8	W10134247		Shield, Heat			Immediately	$ 358.82
9	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 219.04
11	W10525121		Bracket, Console Mounting				$ 98.85
12	W11443964		Bracket, Eye Brow (black)				$ 222.43
13	W10911303		Switch, Infinite (right Rear)   (Replaces: W10578768)			Immediately	$ 104.64
14	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
12A	W11443963		Bracket, Eye Brow (white)				$ 223.30
1A	W11259041		Endcap (white (left))   (Replaces: W11213291)				$ 104.70
1B	W11213292		Endcap (black (right))				$ 71.65
1C	W11259700		Endcap (white (right))   (Replaces: W11213293)				$ 104.70
3A	W11707068		Console, Assembly (white)   (Replaces: W11299265)				$ 105.75
6A	W11594187		Control, Electronic (lcx) (white)   (Replaces: W11536413)			Immediately	$ 375.56
7A	W11707067		Knob (white)   (Replaces: W11331195)				$ 22.98

    View Diagram in Separate Window       Print Part List
