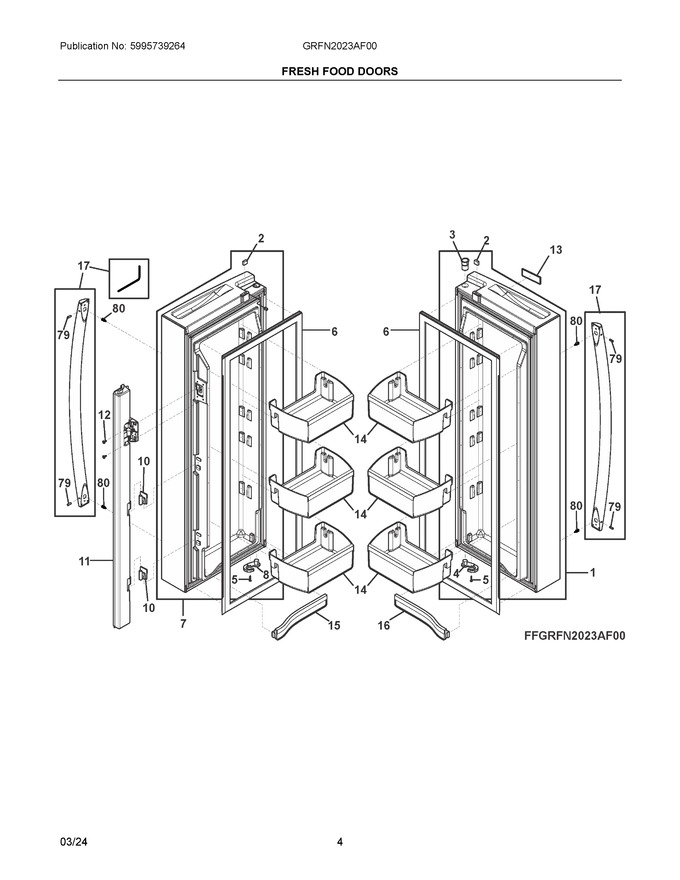

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304536919 | Door Assembly, Fresh Food, Stainless, Rh |
|
Immediately | $ 292.38 | ||||
| 2 | 5304519044 | Magnet, Reed Switch |
|
Immediately | $ 21.06 | ||||
| 3 | 5304529296 | Bearing, Upper, Rh Door |
|
$ 10.16 | |||||
| 4 | 140010465148 | Bearing, Door, Rh, Auto Closer |
|
$ 6.67 | |||||
| 5 | 808337901 | Screw, Pf Ab Pfz Pf, 3.5x1.27x19 |
|
$ 3.37 | |||||
| 6 | 5304536737 | Gasket, Door, Fresh Food |
|
$ 50.05 | |||||
| 7 | 5304536918 | Door Assembly, Fresh Food, Stainless, Lh, W/harness |
|
$ 312.12 | |||||
| 8 | 140010465163 | Bearing, Door, Lh, Auto Closer |
|
Immediately | $ 5.68 | ||||
| 10 | 5304519080 | Hinge, Flip Mullion |
|
Immediately | $ 12.69 | ||||
| 11 | 5304536738 | Flip Mullion, Assembly, Grey, Fresh Food |
|
$ 118.19 | |||||
| 12 | 5304519084 | Screw, Flange Pnhd Phl, 8g X 1/2 |
|
- | |||||
| 13 | 5304512150 | Nameplate, Chrome, Frig Gallery |
|
Immediately | $ 64.61 | ||||
| 14 | 5304536739 | Bin, Door, Gallon |
|
$ 16.32 | |||||
| 15 | 5304536740 | Rack, Door, Lh Lower |
|
Immediately | $ 4.31 | ||||
| 16 | 5304536741 | Rack, Door, Rh Lower |
|
$ 5.46 | |||||
| 17 | 5304536742 | Handle Set, Stainless, (qty 2), W/alen Wrench |
|
$ 278.70 | |||||
| 79 | 218755405 | Screw-set, 10-32 X 0.375 (Replaces: 218755408) |
|
Immediately | $ 22.84 | ||||
| 80 | 5304519063 | Screw, Handle Mounting |
|
Immediately | $ 12.75 |
