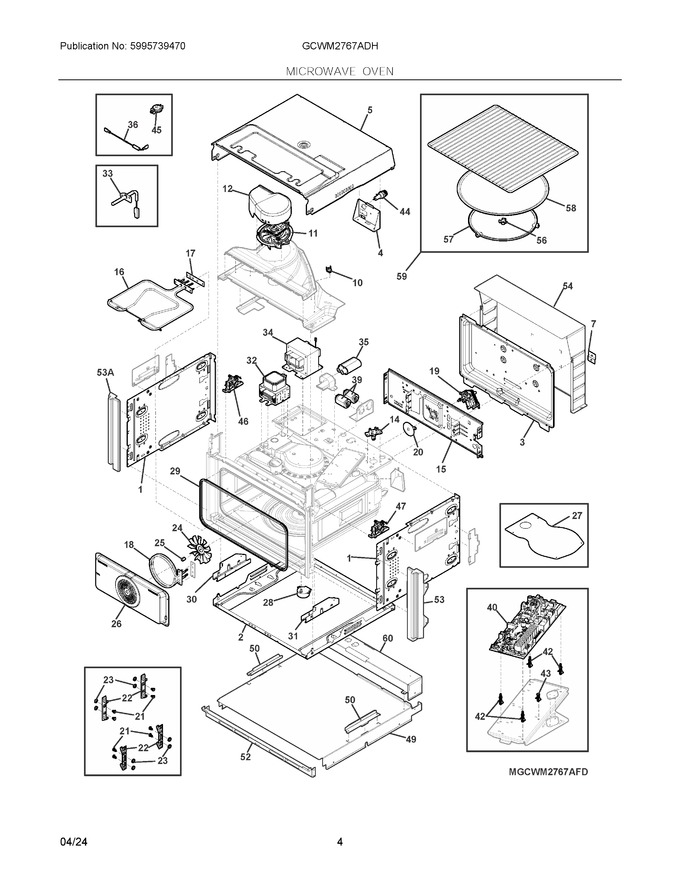

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	555010801		Panel, Side		Appelez-nous	-
2	A19743502		Base, Plate, Bottom		Appelez-nous	-
3	A18591502		Panel, Oven Back		Appelez-nous	-
4	A13873001		Support, Connection Box		Appelez-nous	-
5	A05908717		Housing, Top, Complete				$ 221.21
7	5304530364		Bracket, Conduit Mtg.		Appelez-nous	-
9	316081903		Tray, Steam, Midnight Black				$ 87.71
10	5304538823		Thermostat, Safety, 125c   (Replaces: 318578509)			Immediately	$ 16.36
11	A18653201		Cooling Fan, Assembly, 22w, 120v			Immediately	$ 185.94
12	A13630003		Duct, Magnetron				$ 135.66
14	A07202314		Lamp Assembly, Halogen, G9, 40w		Appelez-nous	-
15	A00843201		Mounting Plate, Back		Appelez-nous	-
16	A08934211		Element, Heating, Upper, Grill				$ 124.71
17	A13375801		Bracket, Heating Element				$ 12.39
18	A08933932		Element, Heating, Convection Fan		Appelez-nous	-
19	555027103		Motor, Convection Fan			Immediately	$ 201.78
20	555033100		Shield, Convection Fan, Choke				$ 26.12
21	808373901		Pin, Support, Wire Shelf			Immediately	$ 11.29
22	A18262002		Support, Wire Shelf				$ 107.40
23	A19949501		Washer			Immediately	$ 9.44
24	555023101		Fan Blade, Convection				$ 32.87
25	561231207		Nut, Fan Blade			Immediately	$ 20.39
26	A07296807		Cover, Convection Fan, Back		Appelez-nous	-
27	A16295701		Cover, Mica				$ 33.93
28	A13805506		Motor, Turntable				$ 126.76
29	807177101		Gasket, Door, Microwave		Appelez-nous	-
30	387886701		Support, Lh Hinge				$ 27.80
31	387886702		Support, Rh Hinge				$ 27.80
32	555030400		Magnetron			Immediately	$ 248.46
33	555044200		Sensor, Pt500				$ 87.13
34	555030502		Transformer, 60hz, 120v			Immediately	$ 394.85
35	315795903		Capacitor, 60hz			Immediately	$ 126.57
36	555042802		Diode, High Voltage			Immediately	$ 35.78
39	A20022801		Filter, Voltage, Rfi				$ 140.37
40	A18493801		Pc Board, Power, Ovc-p			Immediately	$ 322.75
42	330647300		Clip, Pc Board , (4)		Appelez-nous	-
43	330647301		Clip, Pc Board, Flat Top		Appelez-nous	-
44	318647300		Fuse Holder, Assembly, 412 #, 20a, W/fuse			Immediately	$ 241.92
45	387963800		Holder, Cable, Round		Appelez-nous	-
46	A23242801		Interlock, Assembly, Lh Safety, W/switch   (Replaces: A16919201)			Immediately	$ 99.70
47	A23243301		Interlock, Assembly, Rh Safety, W/switch   (Replaces: A16919301)			Immediately	$ 115.04
49	5304531545		Plate, Support		Appelez-nous	-
50	5304531556		Support, Side		Appelez-nous	-
52	5304531539		Trim, Vent, Black		Appelez-nous	-
53	5304531546		Spacer, Side, Rh		Appelez-nous	-
54	5304531550		Cover, Cable Guard		Appelez-nous	-
56	A15654501		Coupler, Turntable			Immediately	$ 20.28
57	A13881201		Roller Assembly, Turntable, Spider				$ 114.99
58	A13804901		Turntable, Glass, Round				$ 122.46
59	A18994801		Accessory Kit, Microwave, W/tray-rack			Immediately	$ 154.46
60	5304531540		Cover, Back		Appelez-nous	-
53A	5304531547		Spacer, Side, Lh		Appelez-nous	-
53A	5304504202		Probe, Meat Temp, Red			Immediately	$ 117.99
54A	139017203		Receptacle Assy, Meat Probe			Immediately	$ 170.10
NI	405522329		Screw Kit, T20, 4, 2 X 16, (4 Pack)		Appelez-nous	-
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	5029617300		Clip Kit, Power Board, (11 Clip Pack)		Appelez-nous	-
NI	387854510		Screw, Din 7981, 4, 2 X 9, 5, (9)		Appelez-nous	-
NI	349475501		Screw, Ab Pan T20, N6 X 1/4, (11)		Appelez-nous	-
NI	5304531553		Harness, Wiring, Low Voltage		Appelez-nous	-
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.58
NIA	555031101		Sensor, Magnetron, Ntc				$ 153.25
NIA	561045004		Nut, Heat Element, Upper		Appelez-nous	-
NIB	139022101		Insualtion, Noise Dampening		Appelez-nous	-
