SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel


03 - Microwave Oven


04 - Lower Oven


05 - Doors

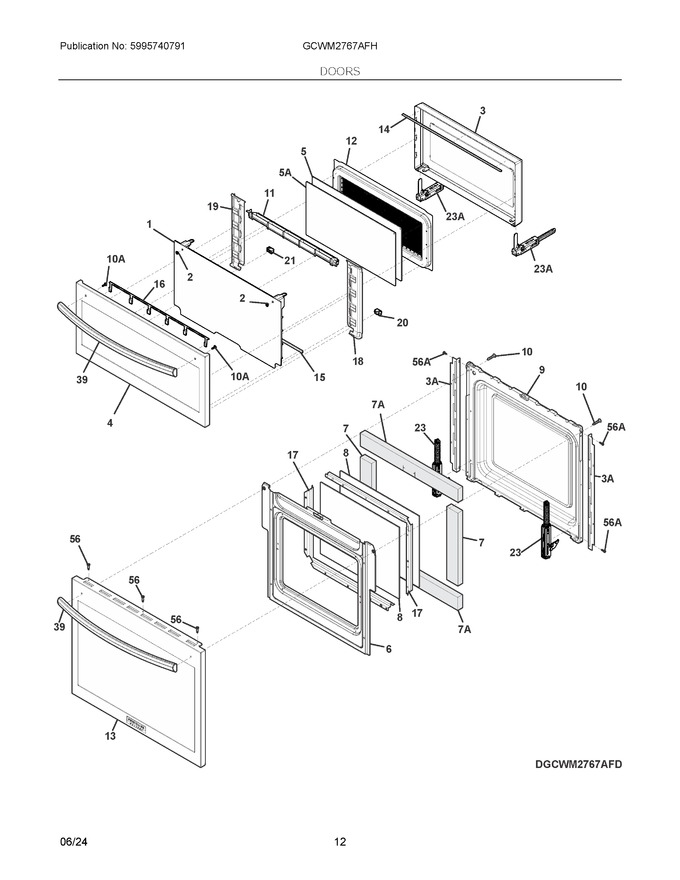

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	555118433		Door Glass, Assembly, Front, Microwave			Immediately	$ 168.14
2	330158601		Spacer, Door Handle		Appelez-nous	-
3	561626486		Door Frame, Inner, Microwave, W/glass			Immediately	$ 246.05
4	5304531565		Door Assembly, Outer, Stainless, Microwave		Appelez-nous	-
5	807625502		Glass, Door, Inner, W/graphics		Appelez-nous	-
6	139014203		Baffle, Door		Appelez-nous	-
7	318372017		Insulation, Door				$ 18.11
8	139085803		Glass, Door, Inner, (2), Eko			Immediately	$ 120.50
9	139002917		Liner, Oven Door				$ 126.45
10	5304414648		Screw, Handle Mtg.				$ 15.75
11	A06645500		Cover, Door Glass, Top, Separator				$ 46.35
12	555040920		Inner Door, Assembly, Microwave			Immediately	$ 205.10
13	5304525831		Door Assembly, Outer, Glass/steel, Stainless, W/badge				$ 222.72
14	808082001		Gasket, Door Cover, Microwave				$ 100.33
15	808140001		Tape, Drip, Front, Door Glass				$ 40.78
16	5304525161		Cover, Door Top, Plastic				$ 32.11
17	318264735		Spacer, Glass, (2)				$ 71.66
18	5304531554		Cover, Column, Rh		Appelez-nous	-
19	5304531555		Cover, Column, Lh		Appelez-nous	-
20	5304525159		Stopper, Plastic, Rh Door				$ 10.95
21	5304525160		Stopper, Plastic, Lh Door				$ 10.95
23	808930405		Hinge, Door, Blue, Soft Close				$ 111.51
39	5304525823		Handle, Door, Stainless				$ 107.05
56	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
10A	5304528301		Screw, Truss, 8-32 X 17.65				$ 4.16
23A	A06683602		Hinge, Door, Microwave				$ 111.73
3A	5304525458		Trim, Door, Black, Side				$ 44.38
56A	5303324184		Screw, 8-18 X 5/16, Black			Immediately	$ 15.75
5A	555033602		Glass, Door, Inner				$ 100.28
7A	318372018		Insulation, 20.5 X 2.375, 1" Thick, (2)				$ 15.75
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 30.55
NI	349479701		Screw, Pt T20, 4 X 10, (8)		Appelez-nous	-
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 15.75

    View Diagram in Separate Window       Print Part List
