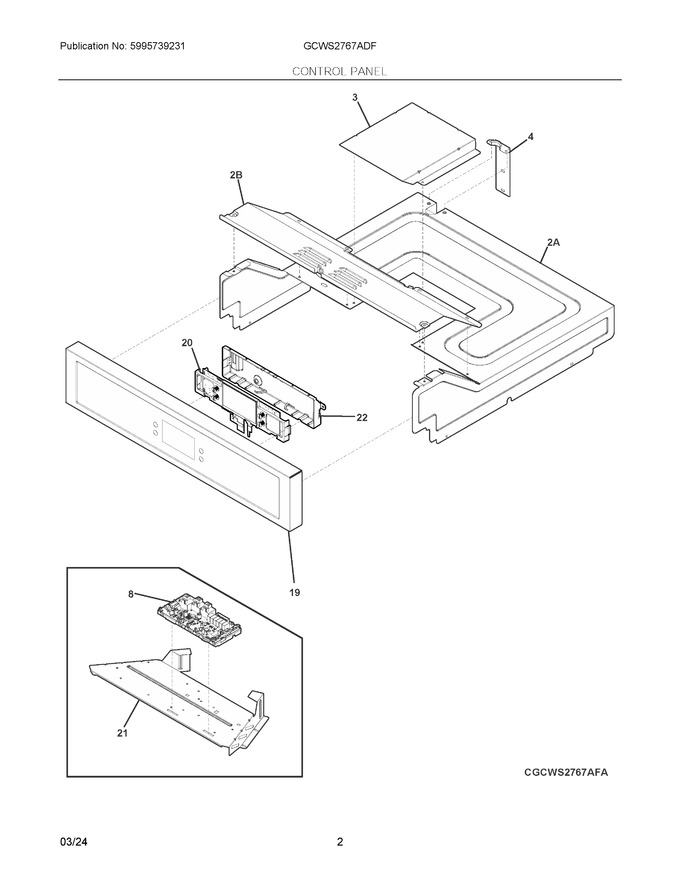

02 - Control Panel


03 - Body


04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318577801		Box, Fan Service		Appelez-nous	-
4	5304532393		Bracket, Conduit		Appelez-nous	-
8	5304536397		Board-ovc M Wo, 8 #			Immediately	$ 155.52
19	5304525828		Control Panel, Assembly, Black Stainless				$ 174.36
20	5304537024		Control-eoc Pux E Sc Swo Glry				$ 195.00
21	139028002		Bracket, Mounting				$ 42.63
22	5304523582		Housing, Controller			Immediately	$ 37.92
2A	139003603		Cover, Oven Top				$ 77.77
2B	139003702		Cover, Control Access				$ 31.08
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	5304532406		Harness, Wiring, Low Voltage		Appelez-nous	-
NIA	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
NIA	318165800		Spacer, Glass, Foam				$ 19.69
