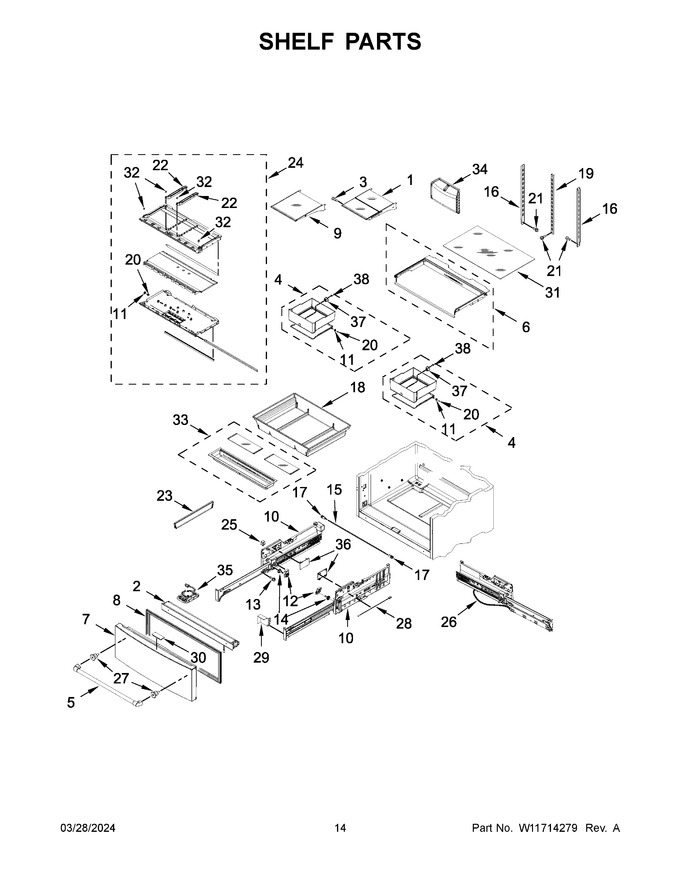

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10737428 | Assembly, Tuck Shelf (Replaces: W10737428) |
|
Immediately | $ 395.52 | ||||
| 2 | W11728384 | Assembly, Secondary Mullion (Replaces: W11697259) |
|
- | |||||
| 3 | W11400994 | Screw (Replaces: W10325002) |
|
$ 13.44 | |||||
| 4 | W11728302 | Assembly, Crisper (Replaces: W11703349) |
|
- | |||||
| 5 | W11499276 | Handle, Door (stainless) (Replaces: W11222205) |
|
$ 144.07 | |||||
| 6 | W11728301 | Assembly, Crisper Cover (includes Front Support) (Replaces: W11696529) |
|
- | |||||
| 7 | W11740853 | Door, Pantry (includes Door Gasket) (black Stainless) (Replaces: W11699367) |
|
- | |||||
| 8 | W10622445 | Gasket, Pantry (black) (Replaces: W10545600) |
|
$ 355.54 | |||||
| 9 | W10807832 | Assembly, Shelf (Replaces: W10756314) |
|
$ 285.74 | |||||
| 10 | W11728345 | Adapter, Pantry (left Hand) (Replaces: W11695482) |
|
- | |||||
| 11 | W10788795 | Roller |
|
$ 20.60 | |||||
| 12 | W11728346 | Cover, Gear (left Hand) (Replaces: W11698180) |
|
- | |||||
| 13 | 12991702 | Screw |
|
$ 14.93 | |||||
| 14 | W10277360 | Gear, Spur |
|
$ 31.85 | |||||
| 15 | W11728347 | Shaft, Rack (Replaces: W11706355) |
|
- | |||||
| 16 | W11819951 | Ladder, Side (Replaces: W10467460) |
|
- | |||||
| 17 | W11728376 | Collar, Gear (Replaces: W10447530) |
|
- | |||||
| 18 | WPW10530656 | Pan, Pantry (Replaces: W10530656) |
|
$ 240.88 | |||||
| 19 | W10467461 | Ladder, Center |
|
Immediately | $ 52.31 | ||||
| 20 | 67006692 | Screw (Replaces: 12991401) |
|
$ 10.79 | |||||
| 21 | W10423561 | Screw |
|
- | |||||
| 22 | W10638123 | Guide, Crisper |
|
$ 292.10 | |||||
| 23 | W11763409 | Divider, Large Pantry (Replaces: W10772797) |
|
$ 58.78 | |||||
| 24 | W11728303 | Assembly, Floor (includes Heater) (Replaces: W11696535) |
|
- | |||||
| 25 | W11384469 | Switch, Rocker (Replaces: W10847853) |
|
Immediately | $ 39.09 | ||||
| 26 | W11170612 | Harness, Side Adapter (Replaces: W10512203) |
|
Immediately | $ 82.35 | ||||
| 27 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.45 | ||||
| 28 | W11168403 | Thermistor (Replaces: W10549991) |
|
Immediately | $ 86.14 | ||||
| 29 | W11728382 | Cover, Connector (Replaces: W11695471) |
|
- | |||||
| 30 | W11728344 | Assembly, User Interface (stainless) (Replaces: W11697799) |
|
- | |||||
| 31 | W11038526 | Glass, Crisper (Replaces: W10893770) |
|
$ 263.10 | |||||
| 32 | 12702901 | Pad, Glide |
|
- | |||||
| 33 | W10858273 | Bin, Secondary Mullion (Replaces: W10780178) |
|
$ 253.20 | |||||
| 34 | W11462816 | Assembly, Produce Preserver (Replaces: W10826105) |
|
Immediately | $ 17.15 | ||||
| 35 | W11483116 | Assembly, Led Light Module (Replaces: W11228040) |
|
Immediately | $ 21.81 | ||||
| 36 | W10731491 | Cover, Side Adapter |
|
$ 110.32 | |||||
| 37 | W11728927 | Spacer, Crisper Handle (Replaces: W11694798) |
|
$ 13.72 | |||||
| 38 | WPW10001160 | Screw (stainless) (Replaces: W10001160) |
|
$ 10.33 | |||||
| 10A | W11728378 | Adapter, Pantry (right Hand) (Replaces: W11695479) |
|
- | |||||
| 12A | W11728381 | Cover, Gear (right Hand) (Replaces: W11698181) |
|
- |
