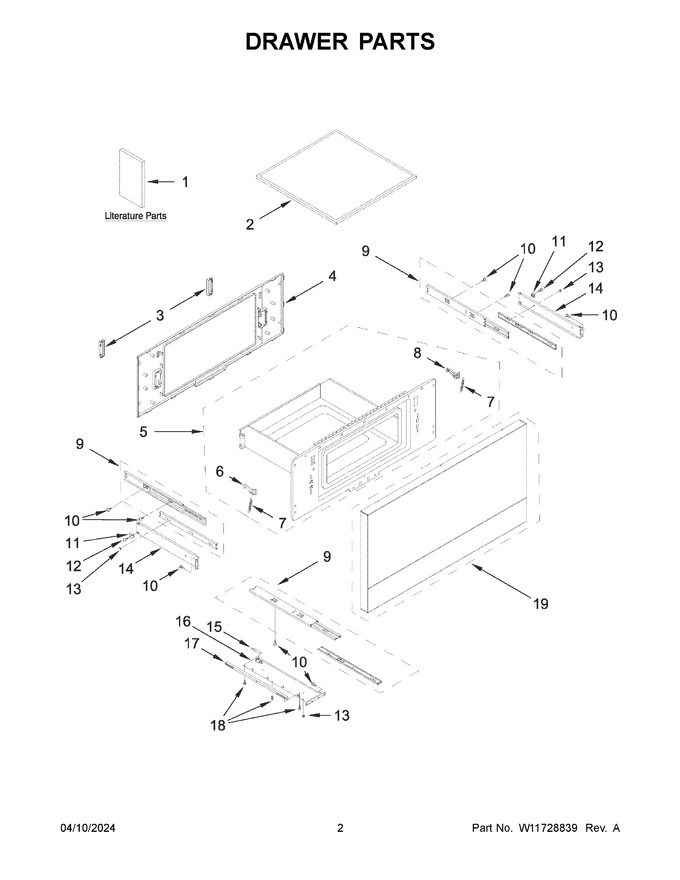

02 - Drawer Parts


03 - Control Panel Parts


04 - Oven Cavity Parts


05 - Switch Parts


06 - Interior Parts


07 - Base Plate Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11257634		Installation Instructions		Appelez-nous	-
2	W11202464		Tray, Oven   (Replaces: W11201328)		Appelez-nous	-
3	W11201390		Cover, Support				$ 70.68
4	W11201870		Cover, Choke		Appelez-nous	-
5	W11847595		Assembly, Drawer   (Replaces: W11315618)				$ 490.69
6	W11646236		Hook, Left Latch		Appelez-nous	-
7	W11646237		Spring, Latch		Appelez-nous	-
8	W11646234		Hook, Right Latch		Appelez-nous	-
9	W11672511		Slide, Drawer   (Replaces: W11201775)				$ 122.04
10	8205835		Screw		Appelez-nous	-
11	W11199897		Stopper, Door		Appelez-nous	-
12	W10278632		Screw		Appelez-nous	-
13	W10278889		Nut		Appelez-nous	-
14	W11315617		Support, Side		Appelez-nous	-
15	W11685617		Piston, Door Stop   (Replaces: W11201804)				$ 88.77
16	W11201393		Support, Bottom		Appelez-nous	-
17	W11444631		Gear, Drawer   (Replaces: W11201777)		Appelez-nous	-
18	W10278647		Screw		Appelez-nous	-
19	W11331003		Panel, Door				$ 716.27
1A	W11257722		Use And Care Guide		Appelez-nous	-
1B	W11109162		Cooking Guide (english)		Appelez-nous	-
NI	W11199540		Cord, Power				$ 175.31
NI	W11362536		Harness, Main				$ 147.48
NI	W11677637		Fuse (20a)   (Replaces: W11315605)				$ 48.98
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
