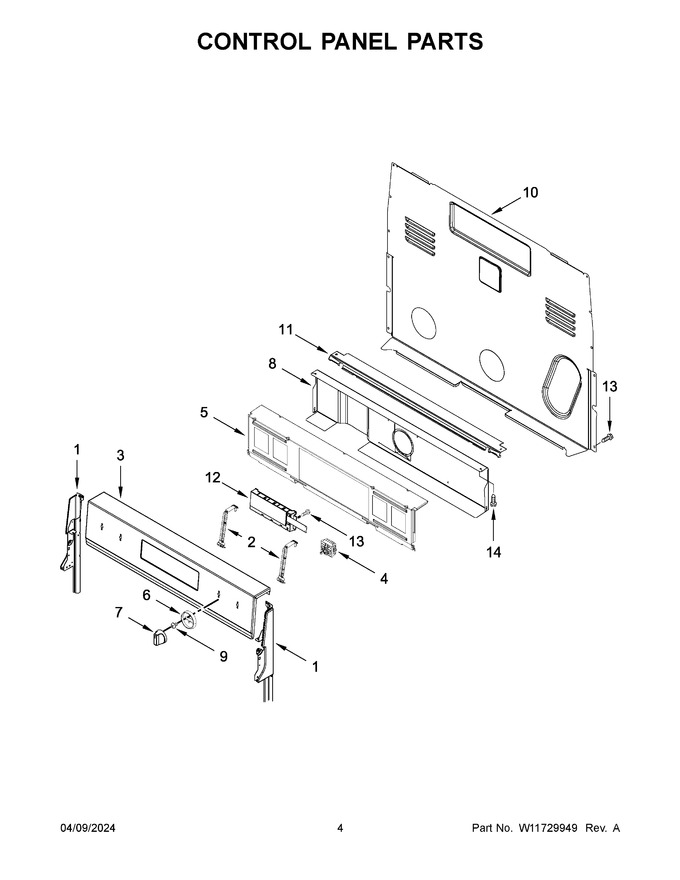

03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11213290 | Endcap (black (left)) |
|
$ 312.99 | |||||
| 2 | W10856361 | Bracket, Control |
|
- | |||||
| 3 | W11105836 | Console (black) (Replaces: W10869983) |
|
- | |||||
| 4 | W10857622 | Switch, Infinite (left Front And Right Front) (Replaces: W10437092) |
|
Immediately | $ 215.89 | ||||
| 5 | W10901802 | Panel, Backer |
|
$ 87.11 | |||||
| 6 | W10905964 | Bezel (black) |
|
- | |||||
| 7 | W11715915 | Knob (black) (Replaces: W10905965) |
|
$ 38.21 | |||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 | ||||
| 9 | W11846982 | Screw (Replaces: W10498399) |
|
$ 10.58 | |||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 197.14 | |||||
| 11 | W10525121 | Bracket, Console Mounting |
|
$ 88.97 | |||||
| 12 | W11536793 | Control, Electronic (lcx) (black) (Replaces: W11511567) |
|
Immediately | $ 268.30 | ||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 14 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 1A | W11213292 | Endcap (black (right)) |
|
$ 64.49 | |||||
| 4A | W10911303 | Switch, Infinite (right Rear) (Replaces: W10578768) |
|
Immediately | $ 103.74 | ||||
| 4B | W10917724 | Switch, Infinite (left Rear) (Replaces: W10437094) |
|
Immediately | $ 116.42 |
