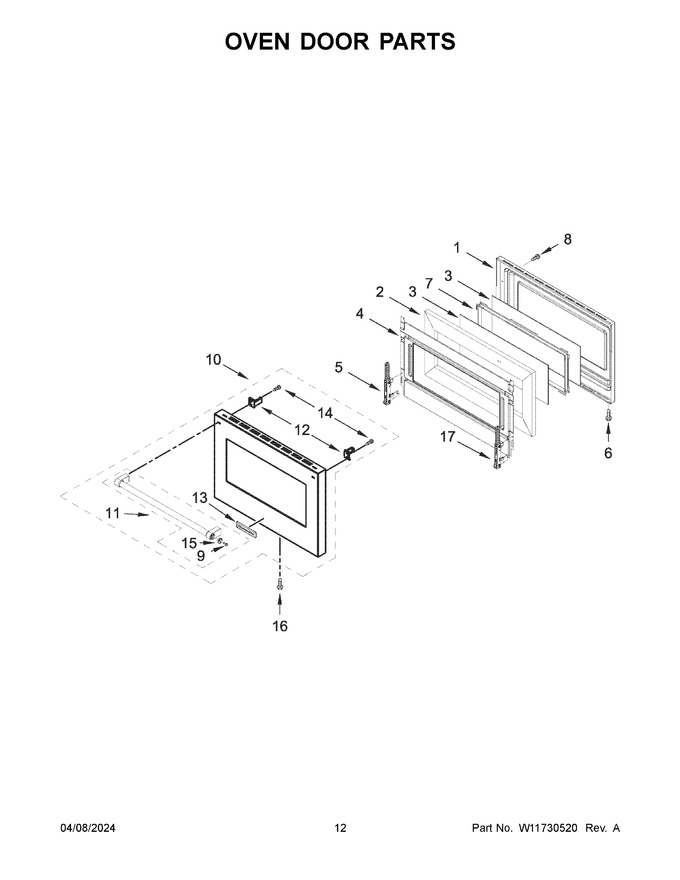

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11334152 | Liner, Door (Replaces: W11036772) |
|
$ 375.81 | |||||
| 2 | W11688331 | Insulation, Door (Replaces: W10884823) |
|
$ 41.75 | |||||
| 3 | W11334153 | Glass, Inner (Replaces: W11036791) |
|
$ 118.31 | |||||
| 4 | W11194820 | Retainer, Glass |
|
$ 171.45 | |||||
| 5 | W11568941 | Hinge, Door (left) (Replaces: W11096978) |
|
Immediately | $ 137.39 | ||||
| 6 | W11193480 | Screw (Replaces: W10607120) |
|
$ 13.25 | |||||
| 7 | W11194814 | Frame, Glass |
|
Immediately | $ 314.85 | ||||
| 8 | W11712404 | Screw (Replaces: W10898280) |
|
Immediately | $ 13.29 | ||||
| 9 | W10920281 | Screw (Replaces: W10656499) |
|
Immediately | $ 8.06 | ||||
| 10 | W11731589 | Outer Door Assembly (includes Handle) (Replaces: W11712135) |
|
$ 1,173.91 | |||||
| 11 | W11512747 | Handle Assembly (Replaces: W11362709) |
|
- | |||||
| 12 | W11317513 | Bracket, Handle (Replaces: W11197830) |
|
$ 70.93 | |||||
| 13 | W10909682 | Badge (Replaces: W10518672) |
|
Immediately | $ 68.58 | ||||
| 14 | WPW10276043 | Screw (Replaces: W10276043) |
|
$ 6.57 | |||||
| 15 | W11361074 | Medallion, Handle |
|
- | |||||
| 16 | W10162096 | Screw |
|
$ 19.71 | |||||
| 17 | W11568813 | Hinge, Door (right) (Replaces: W11096977) |
|
Immediately | $ 124.09 |
