SELECT A DIAGRAM
01 - Chassis Assembly
02 - Chassis Assembly

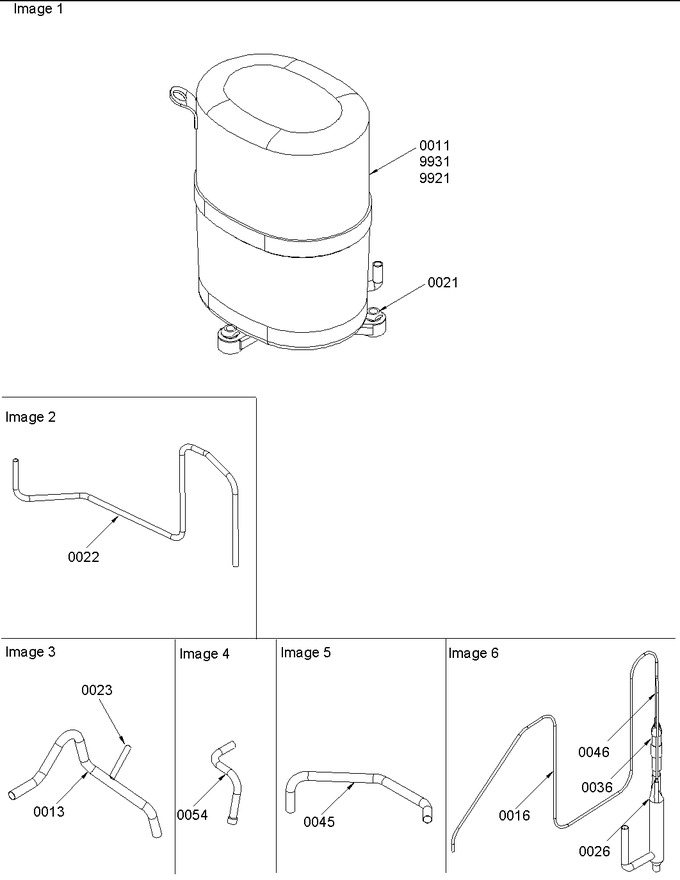

03 - Compressor Assembly
04 - Control Assembly
05 - Outer Case Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 20091801 | Comp H23b16sabcx |
|
- | |||||
| 13 | 20105101 | Tube, Indoor |
|
- | |||||
| 16 | 20106201 | Tube, Capillary |
|
- | |||||
| 21 | B1315401 | Grommet |
|
- | |||||
| 22 | 20104901 | Tube, Discharge |
|
- | |||||
| 23 | A4528912 | Tube, Process |
|
- | |||||
| 26 | B1257808 | Strainer |
|
- | |||||
| 36 | C6469901 | Check Valve |
|
- | |||||
| 45 | 20110701 | Tube, Suction |
|
- | |||||
| 46 | 20106101 | Tube, Capillary |
|
- | |||||
| 54 | Y20105001 | Tube, Outdoor |
|
- | |||||
| 9921 | 10720601 | Gasket, Term. Cover |
|
- | |||||
| 9931 | 10720801 | Cover, Term |
|
- |
