01 - Cover Sheet
02 - Burner Box And Griddle Parts

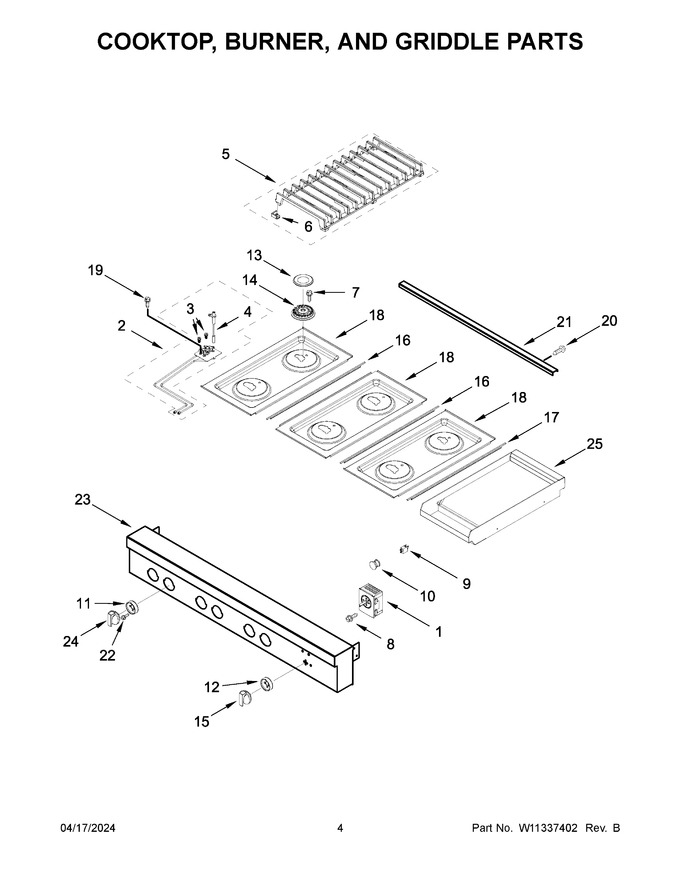

03 - Cooktop, Burner, And Griddle Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11318834 | Control, Griddle (Replaces: W11033497) |
|
$ 356.52 | |||||
| 2 | W11337062 | Assembly, Orifice Holder (left Front, Left Center Front, Right Center Front) (Replaces: W10892771) |
|
Immediately | $ 128.25 | ||||
| 3 | W11643164 | Orifice, Main (17.4k) (all But Left Center Rear) (Replaces: W10892422) |
|
Immediately | $ 60.97 | ||||
| 4 | W11580024 | Igniter (all But Left Center Rear) (Replaces: W11238758) |
|
Immediately | $ 23.66 | ||||
| 5 | W11516449 | Assembly, Grate (black (left)) (Replaces: W11291180) |
|
$ 265.06 | |||||
| 6 | W11550692 | Bumper, Grate (Replaces: W11042504) |
|
Immediately | $ 12.57 | ||||
| 7 | W11766499 | Screw (Replaces: W11323260) |
|
Immediately | $ 12.72 | ||||
| 8 | W10674068 | Screw |
|
$ 24.39 | |||||
| 9 | W10116114 | Light, Indicator Housing |
|
Immediately | $ 93.57 | ||||
| 10 | W10294500 | Lens, Indicator Light |
|
$ 7.69 | |||||
| 11 | W11317889 | Bezel, Cooktop (Replaces: W11090284) |
|
$ 106.87 | |||||
| 12 | W11317890 | Bezel, Griddle (Replaces: W11104967) |
|
$ 109.56 | |||||
| 13 | W11319224 | Cap, Burner (black (set Of 6)) (Replaces: W11121392) |
|
Immediately | $ 252.20 | ||||
| 14 | W11319683 | Spreader, Flame (high) (all But Left Center Rear) (Replaces: W10891987) |
|
Immediately | $ 250.69 | ||||
| 15 | W11317536 | Knob, Griddle (stainless) (Replaces: W10891923) |
|
$ 148.63 | |||||
| 16 | W10271524 | Trim, T-strip (black) |
|
$ 212.34 | |||||
| 17 | W10291193 | Trim, L-strip |
|
- | |||||
| 18 | W11316700 | Panel, Cooktop (black (left)) (Replaces: W11038237) |
|
$ 502.01 | |||||
| 19 | 7101P42660 | Screw |
|
- | |||||
| 20 | 7101P33860 | Screw |
|
- | |||||
| 21 | W11355761 | Trim, Island |
|
- | |||||
| 22 | W11509770 | Screw (Replaces: W11328357) |
|
$ 14.23 | |||||
| 23 | W11632359 | Console Panel (Replaces: W11222273) |
|
- | |||||
| 24 | W11317537 | Knob, Burner (stainless) (Replaces: W10887596) |
|
Immediately | $ 155.66 | ||||
| 25 | W11602621 | Assembly, Griddle Module (Replaces: W10891745) |
|
Immediately | $ 1,547.02 | ||||
| 14A | W11319673 | Spreader, Flame (low) (left Center Rear) (Replaces: W10892022) |
|
Immediately | $ 229.46 | ||||
| 18A | W11316701 | Panel, Cooktop (black (left Center)) (Replaces: W11038241) |
|
$ 502.01 | |||||
| 18B | W11316702 | Panel, Cooktop (black (right Center)) (Replaces: W11038249) |
|
- | |||||
| 2A | W11337063 | Assembly, Orifice Holder (left Rear And Right Center Rear) (Replaces: W10892486) |
|
Immediately | $ 128.27 | ||||
| 2B | W11337065 | Assembly, Orifice Holder (left Center Rear) (Replaces: W10892772) |
|
$ 128.73 | |||||
| 3A | W10892440 | Orifice, Main (7.2k) (left Center Rear) |
|
$ 99.86 | |||||
| 3B | W11661909 | Orifice, Simmer (2.6k) (all But Left Center Rear) (Replaces: W10892435) |
|
Immediately | $ 74.14 | ||||
| 3C | W10892429 | Orifice, Simmer (2.0k) (left Center Rear) |
|
$ 99.86 | |||||
| 4A | W11238756 | Igniter (left Center Rear) |
|
Immediately | $ 67.96 | ||||
| 5A | W11516481 | Assembly, Grate (black (left Center)) (Replaces: W11291184) |
|
$ 260.06 | |||||
| 5B | W11516462 | Assembly, Grate (black (right Center)) (Replaces: W11291182) |
|
$ 265.07 |
