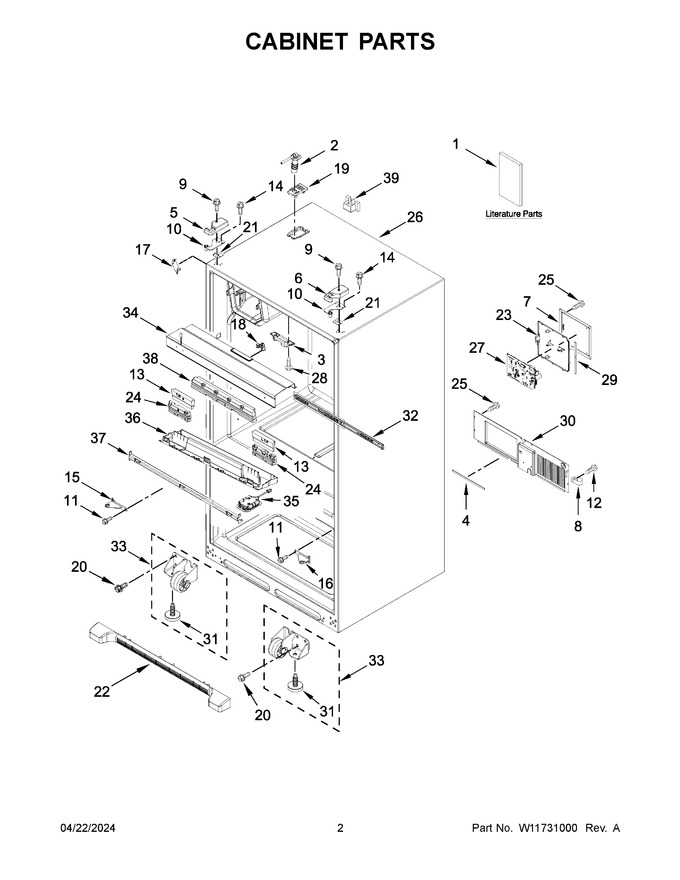

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11665549		Tech Sheet		Appelez-nous	-
2	W11415785		Tube, Water   (Replaces: W11232485)			Immediately	$ 62.39
3	WP67003405		Plate, Pivot   (Replaces: 12698403)			Immediately	$ 7.82
4	W11534848		Gasket			Immediately	$ 21.28
5	W10337647		Cover, Top Hinge Left Hand (black)			Immediately	$ 22.22
6	WP67005956		Cover, Top Hinge Right Hand (black)   (Replaces: 12962302B)				$ 21.47
7	12961602		Cover, Control Box				$ 110.66
8	W11456069		Clamp, Tube   (Replaces: M0108107)			Immediately	$ 21.33
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 7.19
10	W11592375		Hinge, Top (left Hand)   (Replaces: W11456626)				$ 29.09
11	W11573362		Screw (stainless)   (Replaces: W10673840)				$ 14.02
12	67006425		Screw   (Replaces: 12990513)			Immediately	$ 6.95
13	W11697528		Wedge, Spacer (left Hand & Right Hand)   (Replaces: W11651073)		Appelez-nous	-
14	WP489349		Screw   (Replaces: 12992403)			Immediately	$ 7.88
15	W11642008		Hinge, Center (left Hand)   (Replaces: W11610757)				$ 22.50
16	W11642010		Hinge, Center (right Hand)   (Replaces: W11610758)				$ 22.62
17	67003485		Cover, Corner (black)   (Replaces: 12587703B)			Immediately	$ 21.09
18	W10827867		Knob, Vent Slide		Appelez-nous	-
19	12981401B		Cover, Fill Tube (black)				$ 12.62
20	67006564		Screw   (Replaces: W10709365)			Immediately	$ 7.69
21	12999501		Shim, Top Hinge (left Hand)				$ 94.79
22	WPW10534153		Grille, Toe (black)   (Replaces: W10534153)				$ 147.21
23	W11226688		Lid, Hv Control Box   (Replaces: W10296541)				$ 81.10
24	W11686794		Wedge, Spacer (left Hand & Right Hand)   (Replaces: W11651065)		Appelez-nous	-
25	W11686675		Screw   (Replaces: 12990702)				$ 13.59
26	ARI89959A0406B9B609EB9764890B107614		Cabinet (not A Servicable Part)		Appelez-nous	-
27	W11556912		Control, Electronic   (Replaces: W11321365)			Immediately	$ 335.83
28	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.06
29	W10914798		Gasket, Control Box		Appelez-nous	-
30	WPW10270394		Cover, Unit   (Replaces: W10270394)				$ 198.79
31	WPW10141622		Brake, Roller   (Replaces: W10141622)			Immediately	$ 7.85
32	W10367522		Slide, Mullion Vent		Appelez-nous	-
33	W11820444		Assembly, Roller (left Hand)   (Replaces: W10515763)			Immediately	$ 35.57
34	W11032131		Assembly, Secondary Mullion (black)   (Replaces: W10902087)		Appelez-nous	-
35	W11483116		Assembly, Led Light Module   (Replaces: W11228040)			Immediately	$ 21.81
36	W10877249		Housing, Module   (Replaces: W10820998)		Appelez-nous	-
37	W10492234		Brace, Mullion		Appelez-nous	-
38	W10311721		Mullion, Secondary   (Replaces: W11097348)		Appelez-nous	-
39	W11686793		Block, Fill Tube   (Replaces: W11651067)				$ 22.45
10A	W11592374		Hinge, Top (right Hand)   (Replaces: W11456625)			Immediately	$ 29.02
1A	W11608713		Owners Manual		Appelez-nous	-
1B	W11647529		Energy Guide		Appelez-nous	-
21A	12999502		Shim, Top Hinge (right Hand)				$ 95.81
33A	W11820445		Assembly, Roller (right Hand)   (Replaces: W10515762)			Immediately	$ 35.57
