01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts

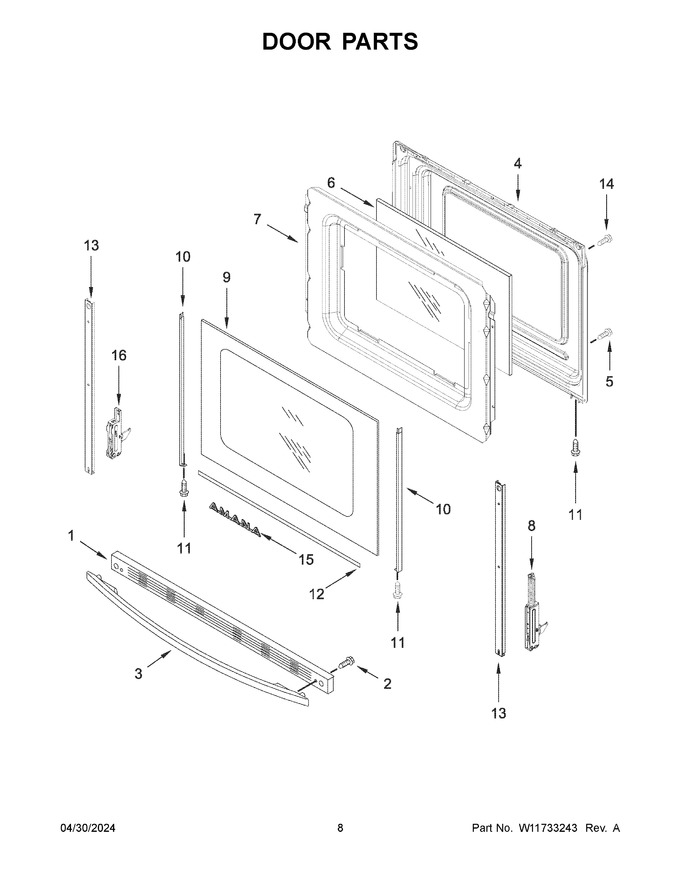

05 - Door Parts
06 - Drawer And Broiler Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10310922 | Trim, Top (black) (Replaces: W10310922) |
|
Immediately | $ 175.37 | ||||
| 2 | W10817436 | Screw (Replaces: W10168559) |
|
Immediately | $ 8.14 | ||||
| 3 | WPW10323589 | Handle, Door (black) (Replaces: W10323589) |
|
Immediately | $ 238.78 | ||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 372.89 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 6 | W11399628 | Glass, Inner (Replaces: W11367326) |
|
$ 171.68 | |||||
| 7 | W11685635 | Retainer, Insulation (Replaces: W11380221) |
|
$ 188.29 | |||||
| 8 | WPW10299225 | Hinge, Active (Replaces: W10299225) |
|
Immediately | $ 52.34 | ||||
| 9 | W11702168 | Glass, Outer (black) (Replaces: W11687921) |
|
$ 185.87 | |||||
| 10 | W10761018 | Trim, Side (black (left)) (Replaces: W10746436) |
|
Immediately | $ 53.77 | ||||
| 11 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 12 | W11569689 | Trim, Lower (black) (Replaces: W11444043) |
|
Immediately | $ 60.08 | ||||
| 13 | W11502236 | Strap, Door (Replaces: W11379944) |
|
Immediately | $ 27.68 | ||||
| 14 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 8.24 | ||||
| 15 | W11788675 | Badge (black) (Replaces: W10846751) |
|
$ 31.10 | |||||
| 16 | WPW10299227 | Hinge, Door (passive) (Replaces: W10299227) |
|
Immediately | $ 70.74 | ||||
| 10A | WP8523172 | Trim, Side (white (left)) (Replaces: 8523172) |
|
Immediately | $ 69.93 | ||||
| 10B | W10761014 | Trim, Side (black (right)) (Replaces: W10746435) |
|
Immediately | $ 72.96 | ||||
| 10C | WP8523166 | Trim, Side (white (right)) (Replaces: 8523166) |
|
Immediately | $ 84.23 | ||||
| 12A | W11594186 | Trim, Lower (white) (Replaces: W11444042) |
|
Immediately | $ 61.37 | ||||
| 15A | W10849465 | Badge (white) |
|
Immediately | $ 82.81 | ||||
| 1A | W10817433 | Trim, Top (white) (Replaces: W10310920) |
|
Immediately | $ 103.27 | ||||
| 3A | W10817434 | Handle, Door (white) (Replaces: W10323588) |
|
Immediately | $ 234.82 | ||||
| 9A | W10904906 | Glass, Outer (white) (Replaces: W10851723) |
|
$ 228.32 |
