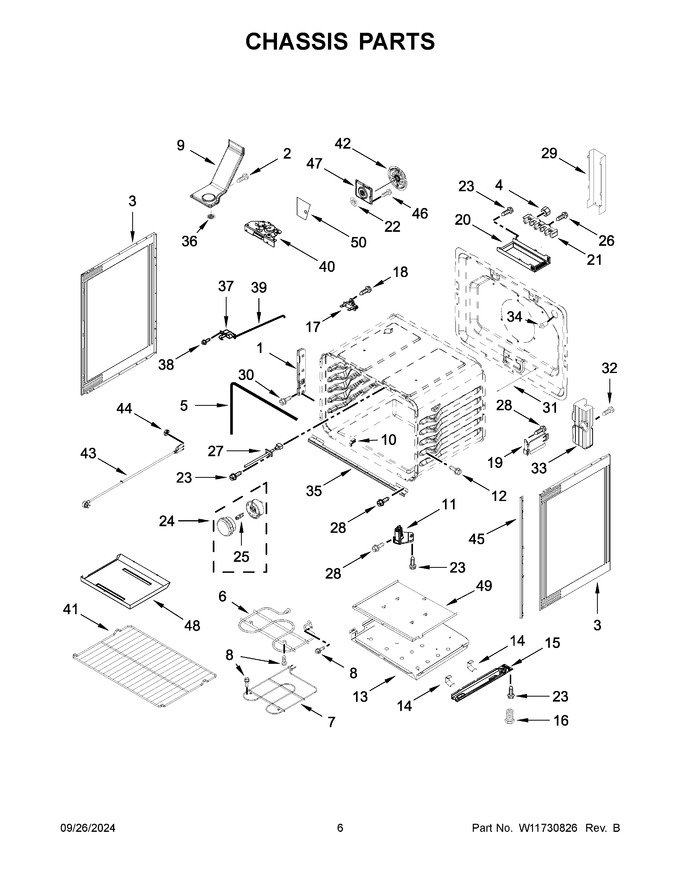

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10647259		Receiver, Hinge   (Replaces: W10289077)			Immediately	$ 8.39
2	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 13.25
3	W11730303		Panel, Side (black)   (Replaces: W11445467)			Immediately	$ 160.65
4	WP3400029		Nut   (Replaces: 3400029)			Immediately	$ 7.37
5	W11542153		Seal, Door   (Replaces: W11491751)			Immediately	$ 45.18
6	W10856603		Element, Broil   (Replaces: W10308476)			Immediately	$ 172.30
7	WP9755770		Element, Bake   (Replaces: 9755770)			Immediately	$ 174.47
8	WP3196174		Screw   (Replaces: 3196174)			Immediately	$ 7.60
9	W11726807		Tube, Vent   (Replaces: W11621245)				$ 69.47
10	W10807823		Glide, Drawer Front   (Replaces: W10674705)			Immediately	$ 17.37
11	WPW10341186		Front Foot Assembly   (Replaces: W10341186)			Immediately	$ 29.33
12	WPW10067840		Screw   (Replaces: W10067840)				$ 7.47
13	W10134121		Tray, Insulation				$ 40.28
14	W10137382		Clip, Panel			Immediately	$ 43.58
15	W11818353		Base Rail Assembly (left)   (Replaces: W10390008)				$ 56.39
16	WPW10058460		Foot, Leveling   (Replaces: W10058460)			Immediately	$ 7.42
17	WP3196548		Fuse, Thermal   (Replaces: 3196548)			Immediately	$ 45.09
18	3196172		Screw			Immediately	$ 12.12
19	W10404688		Clip, Oven Support				$ 15.92
20	W11728255		Bracket, Service   (Replaces: W11673744)				$ 68.83
21	W11736123		Block, Terminal (without Ground Strap)   (Replaces: W11750818)				$ 14.52
22	WP3400968		Nut   (Replaces: 3400968)			Immediately	$ 7.52
23	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
24	W11707255		Light Assembly   (Replaces: W11634772)			Immediately	$ 36.68
25	WPW10571723		Bulb, Halogen 40 Watts   (Replaces: W10571723)			Immediately	$ 24.94
26	WP3400016		Screw   (Replaces: 3400016)				$ 7.55
27	W10833885		Sensor   (Replaces: W10586204)			Immediately	$ 143.70
28	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
29	WPW10326122		Cover, Terminal Block   (Replaces: W10326122)				$ 125.64
30	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.43
31	9757239		Rod, Door Switch				$ 86.73
32	W11135756		Screw   (Replaces: W11034869)				$ 13.26
33	W11135752		Counterweight   (Replaces: W10910404)			Immediately	$ 138.41
34	W11620712		Switch, Door   (Replaces: W11511828)			Immediately	$ 41.68
35	W11464547		Bracket, Front Frame				$ 41.30
36	W11268772		Screen, Vent   (Replaces: W11092984)			Immediately	$ 196.70
37	WP9761013		Front Door Latch Assembly   (Replaces: 9761013)				$ 230.72
38	W11169708		Screw   (Replaces: 3196560)				$ 13.36
39	W10078380		Rod, Latch				$ 85.42
40	WPW10107820		Rear Door Latch Assembly   (Replaces: W10107820)				$ 278.60
41	W11520287		Rack, Oven   (Replaces: W11173792)			Immediately	$ 52.19
42	W11527111		Fan, Convection   (Replaces: W11353930)			Immediately	$ 148.29
43	W11226497		Cord, Power   (Replaces: W10624592)			Immediately	$ 99.50
44	7103P02760		Nut		Appelez-nous	-
45	W11594227		Barrier Rail, Rubber (left And Right)   (Replaces: W11510560)			Immediately	$ 69.01
46	W10516115		Screw				$ 13.07
47	W11730217		Cover, Conv Fan   (Replaces: W11373155)		Appelez-nous	-
48	W10183712		Tray, Hidden Bake				$ 219.56
49	W10134125		Shield, Heat				$ 143.43
50	W10646923		Card, Insulator				$ 17.61
15A	W11818353		Base Rail Assembly (right)   (Replaces: W10390007)				$ 56.39
NI	W11729932		Insulation, Flue   (Replaces: W11404469)				$ 29.49
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11161831		Insulation, Wrap   (Replaces: W10774939)			Immediately	$ 104.77
NI	W11729936		Insulation, Back   (Replaces: W11407378)				$ 111.12

    View Diagram in Separate Window       Print Part List
