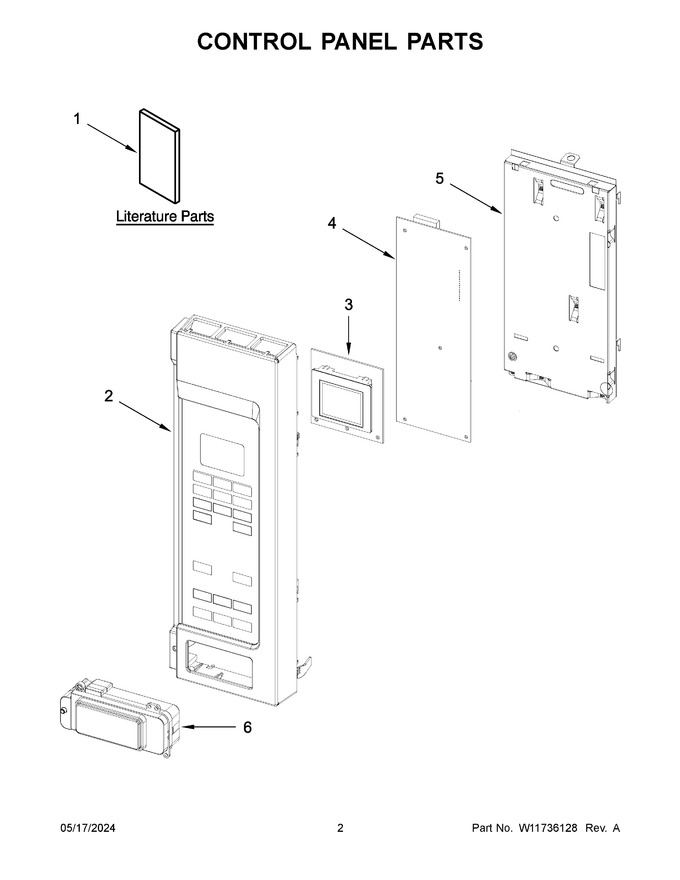

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11199603 | Installation Instructions |
|
- | |||||
| 2 | W11386307 | Assembly, Control Panel (white) |
|
$ 266.58 | |||||
| 3 | W11391719 | Pcba, User Interface (Replaces: W11318425) |
|
$ 242.15 | |||||
| 4 | W11482053 | Pcba, Appliance Control Unit (Replaces: W11318423) |
|
Immediately | $ 210.68 | ||||
| 5 | W11292180 | Backer, Control |
|
$ 72.80 | |||||
| 6 | W11386322 | Assembly, Push Button (white) |
|
- | |||||
| 1A | W11297793 | Use And Care Guide |
|
- | |||||
| 1B | W11297783 | Tech Sheet |
|
- | |||||
| 2A | W11386294 | Assembly, Control Panel (black) |
|
$ 275.91 | |||||
| 6A | W11386320 | Assembly, Push Button (black) |
|
$ 132.21 |
