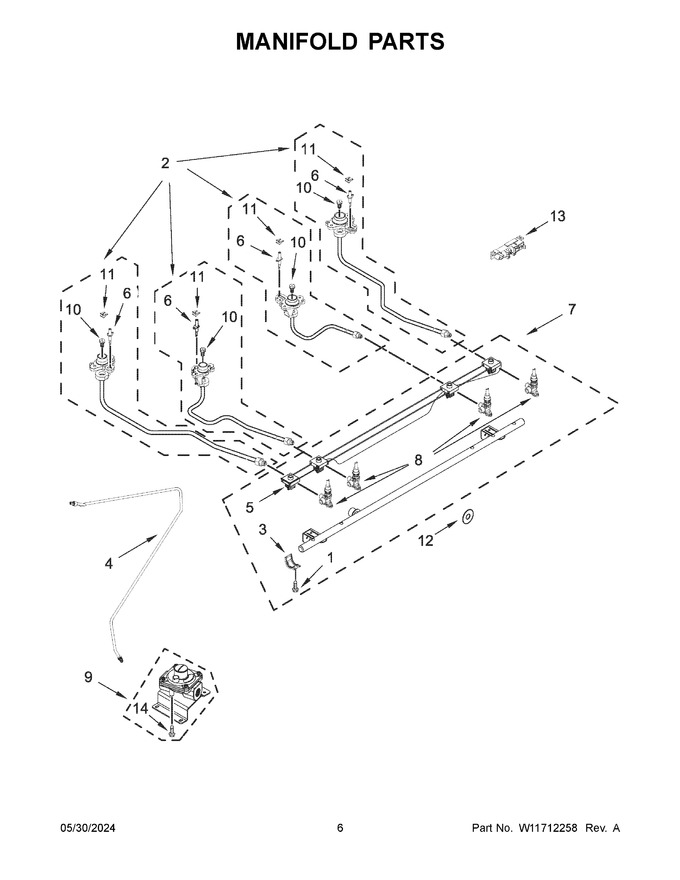

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11577790 | Screw |
|
- | |||||
| 2 | W11186525 | Orifice, Assembly (right Front) |
|
- | |||||
| 3 | W10949105 | Bracket, Saddle Valve |
|
$ 22.75 | |||||
| 4 | W10552945 | Tube, Supply |
|
$ 94.24 | |||||
| 5 | W11596358 | Harness, Spark Switch |
|
- | |||||
| 6 | W11661897 | Electrode, Burner (right Rear) (Replaces: W10669523) |
|
$ 48.36 | |||||
| 7 | W11602207 | Manifold, Assembly |
|
$ 250.64 | |||||
| 8 | W11620675 | Valve, Gas (left Front And Right Front) (Replaces: W11511818) |
|
Immediately | $ 70.32 | ||||
| 9 | W10661850 | Assembly, Regulator And Bracket |
|
$ 131.25 | |||||
| 10 | W10849717 | Orifice (15k) (right Front) |
|
Immediately | $ 93.46 | ||||
| 11 | W11684564 | Electrode, Spring (left Front, Left Rear, Right Front, Right Rear) (Replaces: W10827923) |
|
Immediately | $ 12.65 | ||||
| 12 | W11768651 | Seal, Switch Shaft (Replaces: W11507167) |
|
$ 20.30 | |||||
| 13 | W11693498 | Module, Spark (Replaces: W11349967) |
|
Immediately | $ 105.71 | ||||
| 14 | W10416084 | Screw |
|
- | |||||
| 10A | W10849714 | Orifice (9.5k) (right Rear) |
|
$ 93.46 | |||||
| 10B | W10849722 | Orifice (18k) (left Front) |
|
- | |||||
| 10C | W11677633 | Orifice (5k) (left Rear) (Replaces: W10849719) |
|
$ 99.15 | |||||
| 2A | W11186521 | Orifice, Assembly (right Rear) |
|
- | |||||
| 2B | W11186508 | Orifice, Assembly (left Rear) |
|
$ 77.55 | |||||
| 2C | W11186512 | Orifice, Assembly (left Front) |
|
$ 74.87 | |||||
| 6A | W11643126 | Electrode, Burner (right Front) (Replaces: W10669524) |
|
Immediately | $ 53.21 | ||||
| 6B | W11666003 | Electrode (left Rear) (Replaces: W10669525) |
|
$ 48.41 | |||||
| 6C | W11661929 | Electrode, Burner (left Front) (Replaces: W10669526) |
|
Immediately | $ 50.21 | ||||
| 8A | W11620676 | Valve, Gas (left Rear) (Replaces: W11511819) |
|
$ 70.32 | |||||
| 8B | W11620677 | Valve, Gas (right Rear) (Replaces: W11511824) |
|
$ 70.32 | |||||
| NI | WPW10182767 | Tie, Manifold Wire (Replaces: W10182767) |
|
$ 7.30 | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | W11126047 | Kit, Lp Conversion (Replaces: W10566083) |
|
Immediately | $ 126.50 |
