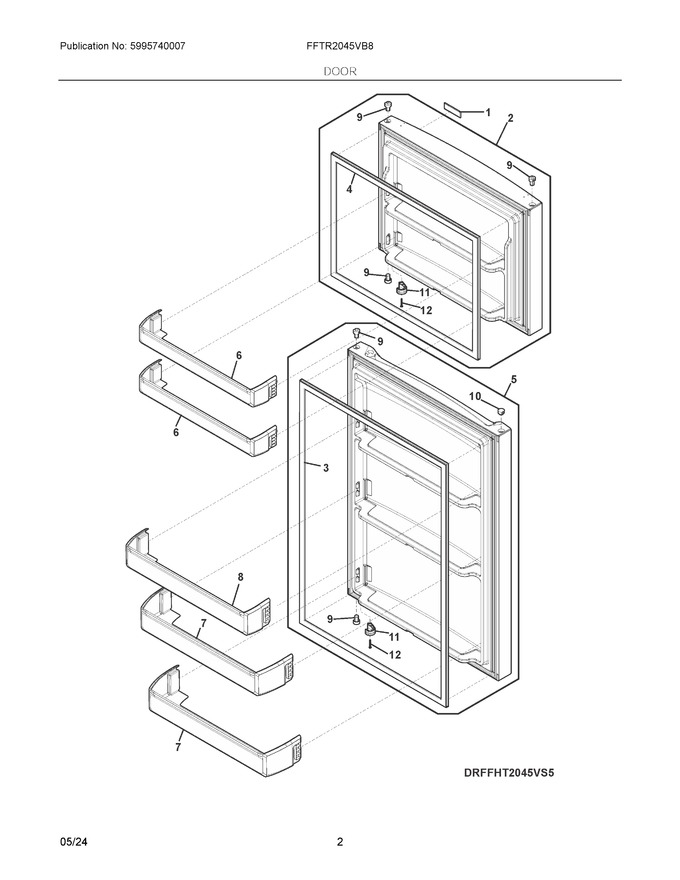

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304511145 | Badge, Frigidaire, Black |
|
$ 5.06 | |||||
| 2 | 5304529518 | Door Assembly, Frzr Door |
|
- | |||||
| 3 | 5304528905 | Gasket, Door, Black, Fresh Food |
|
$ 227.91 | |||||
| 4 | 5304528906 | Gasket, Door, Black, Freezer |
|
Immediately | $ 207.72 | ||||
| 5 | 5304532786 | Door-ff Foamed 30w Pk Blk, 5 (Replaces: 5304529515) |
|
$ 318.83 | |||||
| 6 | 5304524054 | Bin, Door, White, Freezer |
|
$ 56.23 | |||||
| 7 | 5304524055 | Bin, Door, 6", Refrigerator |
|
Immediately | $ 90.07 | ||||
| 8 | 5304536572 | Bin, Door, 4", Clear |
|
$ 135.61 | |||||
| 9 | 5304522193 | Bearing, Hinge, Black |
|
$ 8.43 | |||||
| 10 | 5304522186 | Cover, Hinge Bearing, Black |
|
- | |||||
| 11 | 5304536274 | Hook, Auto Closer, Black |
|
$ 4.19 | |||||
| 12 | 241953905 | Screw, 8-18 X 1.25 |
|
Immediately | $ 12.64 |
