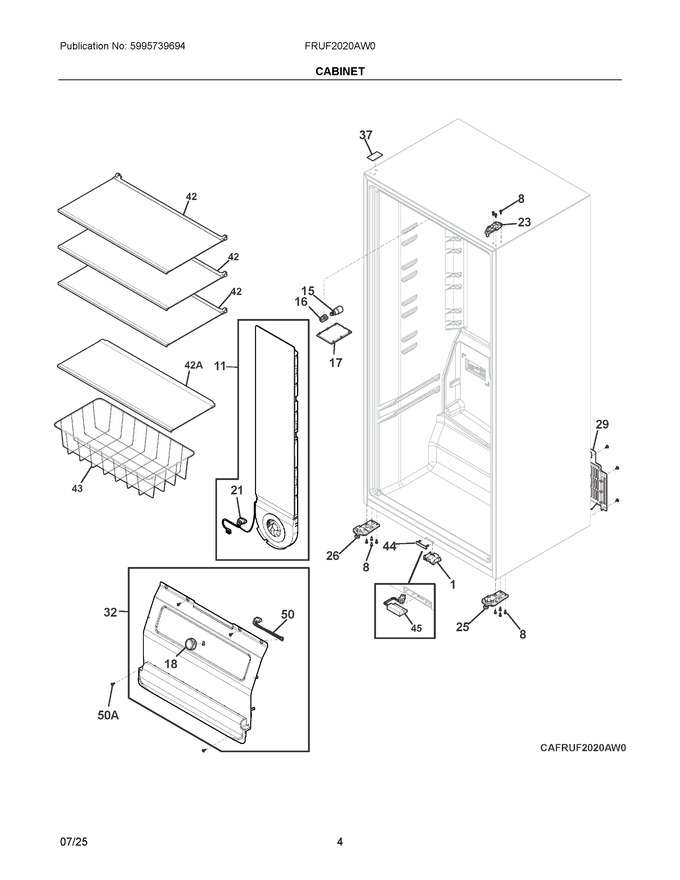

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304523792		Cover, Housing, Reed Switch			Immediately	$ 8.84
7	5304525858		Cover, Access, Machine Compt.				$ 61.86
8	5304522279		Screw, Hex Wsh Hd Quad, M5 X 16			Immediately	$ 3.42
11	5303918891		Air Tower Assenmbly, Complete, W/motor-heater			Immediately	$ 135.53
15	5304522314		Bulb, Light, E17/12 Led			Immediately	$ 44.66
16	5304530650		Socket, Light, Led			Immediately	$ 11.12
17	5304536791		Lens, Light		Appelez-nous	-
18	5304523758		Knob, Temp Control			Immediately	$ 8.84
21	5304523788		Harness Assembly, Temp/defrost, W/thermostats			Immediately	$ 42.84
23	5304537471		Hinge, Upper				$ 5.85
25	5304529045		Hinge-bottom, Assembly, Rh, W/foot-closer				$ 50.61
26	5304523747		Hinge-bottom, Assembly, Lh Non Hinged, W/foot				$ 45.79
32	5304532168		Cover Assembly, Evaporator, W/cold Control				$ 88.20
37	5304523313		Label, Blank, White, Hole Cover			Immediately	$ 3.94
42	5304536377		Shelf Assembly, 26.7", Glass			Immediately	$ 57.17
43	5304537472		Basket, Gray, Lower			Immediately	$ 40.52
44	5304524130		Cover, Reed Switch, Front				$ 10.63
45	5304527992		Reed Switch Harness, Assembly			Immediately	$ 90.77
50	5304523789		Harness, Potentionmeter			Immediately	$ 24.77
42A	5304536378		Shelf Assembly, 27.8", Glass				$ 43.22
50A	5304523738		Screw, Hex Wash Hd, M4.2 X 16				$ 7.23
NI	5304534034		Screw, Type Ab, #10-16		Appelez-nous	-
NI	241500305		Screw, Hex Hd, #8-18 X 5/8				$ 3.37
NIA	5304530289		Cover, Eps, Potentiometer		Appelez-nous	-
NIA	5303918733		Tape, Aluminum, 36mm   (Replaces: 5304522179)			Immediately	$ 4.73
