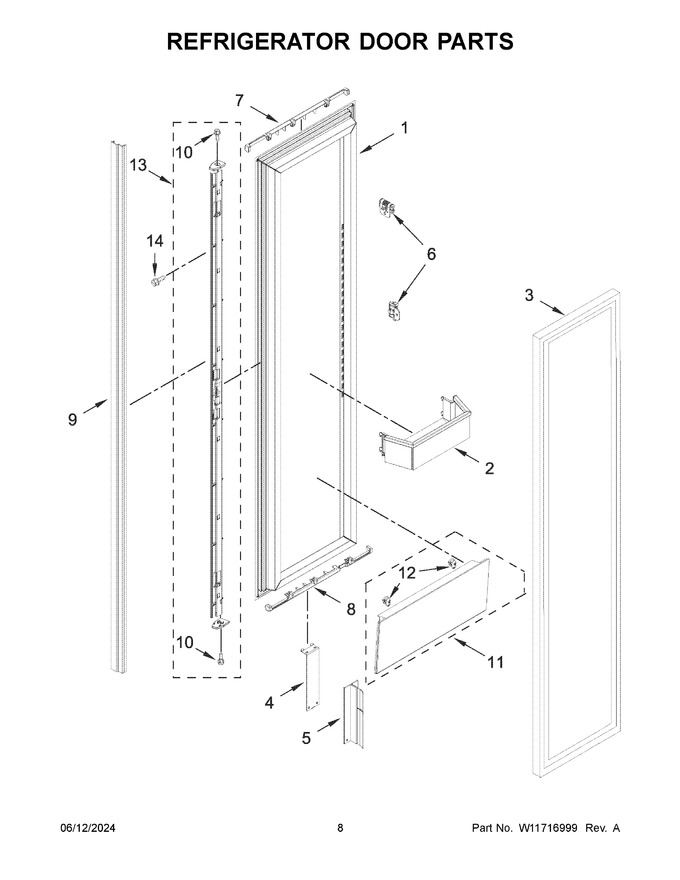

05 - Refrigerator Door Parts


06 - Upper Unit Parts


07 - Lower Unit And Tube Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11723973		Assembly, Slimtech Door		Appelez-nous	-
2	W11748011		Assembly, Door Bin   (Replaces: W11703749)		Appelez-nous	-
3	W11704822		Gasket, Door (black)		Appelez-nous	-
4	W11629976		Bracket, Air Divider		Appelez-nous	-
5	W11233377		Divider, Air   (Replaces: W10908495)		Appelez-nous	-
6	W11622276		Assembly, Panel Adjuster (horizontal)		Appelez-nous	-
7	W11640060		Cover, Top Door		Appelez-nous	-
8	W11640062		Cover, Bottom Door		Appelez-nous	-
9	W11622709		Trim, Panel Adjust		Appelez-nous	-
10	324004079		Screw		Appelez-nous	-
11	W11705866		Assembly, Vacuum Cover		Appelez-nous	-
12	W11709161		Clip, Panel		Appelez-nous	-
13	W11622671		Assembly, Door Adjust		Appelez-nous	-
14	W10704731		Screw		Appelez-nous	-
6A	W11622579		Assembly, Panel Adjuster (vertical)		Appelez-nous	-
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11663175		Gauge, Door		Appelez-nous	-
