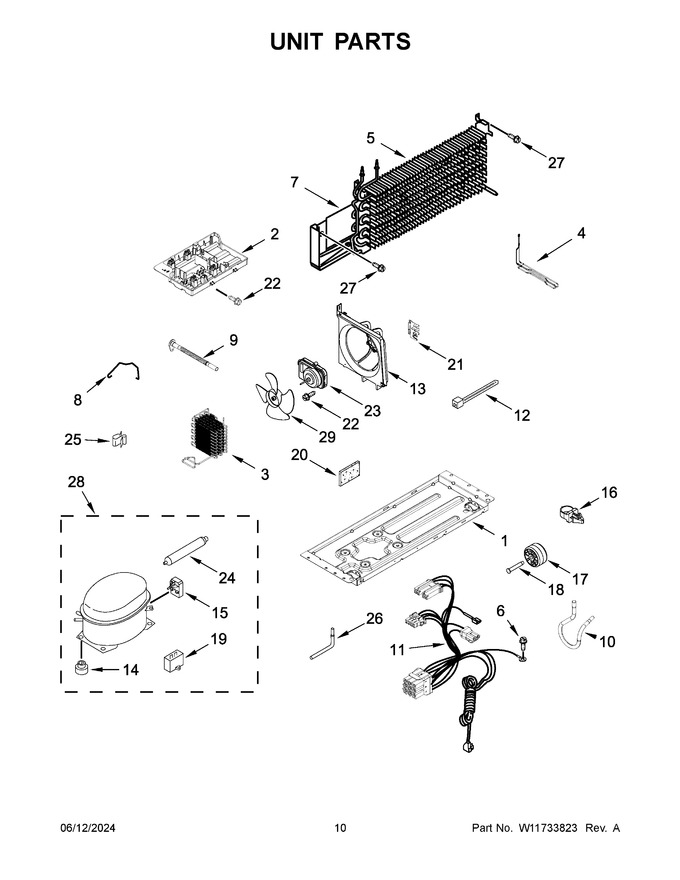

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Shelf Parts
05 - Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11758153 | Support Plate, Compressor (Replaces: W11620973) |
|
- | |||||
| 2 | W10565417 | Tray, Evaporator |
|
$ 38.36 | |||||
| 3 | W11722672 | Condenser (also Order The Following Lokring Parts) (Replaces: W11627779) |
|
$ 280.25 | |||||
| 4 | W11579349 | Heater, Defrost (Replaces: W11339349) |
|
Immediately | $ 117.27 | ||||
| 5 | W11579351 | Assembly, Evaporator (also Order The Following Lokring Parts) (Replaces: W11497963) |
|
Immediately | $ 214.11 | ||||
| 6 | 8533919 | Screw |
|
- | |||||
| 7 | W10570572 | Shield, Heat |
|
$ 32.79 | |||||
| 8 | W11577799 | Strap, Bale (Replaces: W11495051) |
|
- | |||||
| 9 | W10582029 | Extension, Drain Tube |
|
- | |||||
| 10 | W11518247 | Tube, Suction |
|
- | |||||
| 11 | W11677726 | Harness, Unit (Replaces: W11238411) |
|
$ 74.55 | |||||
| 12 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 8.30 | |||||
| 13 | WPW10570380 | Scroll, Fan (Replaces: W10570380) |
|
$ 79.76 | |||||
| 14 | W11678963 | Grommet, Compressor (Replaces: W10806346) |
|
$ 8.51 | |||||
| 15 | W11547180 | Device, Combination Start (start Relay And Overload) (Replaces: W11359381) |
|
Immediately | $ 45.90 | ||||
| 16 | 2219077 | Clip, Harness |
|
$ 64.24 | |||||
| 17 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 32.06 | ||||
| 18 | WP2264756 | Axle, Roller (Replaces: 2264756) |
|
$ 7.55 | |||||
| 19 | WPW10662129 | Capacitor (Replaces: W10590083) |
|
Immediately | $ 58.86 | ||||
| 20 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 14.77 | ||||
| 21 | W11340313 | Bracket, Evaporator |
|
$ 75.36 | |||||
| 22 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 11.61 | ||||
| 23 | W11127829 | Motor, Condenser Fan (Replaces: W11505535) |
|
Immediately | $ 226.58 | ||||
| 24 | W11109499 | Drier (service Drier Without Dye) (also Order The Following Lokring Parts) (Replaces: W10805035) |
|
Immediately | $ 39.12 | ||||
| 25 | W10812039 | Clip, Wire (Replaces: 2326941) |
|
$ 11.12 | |||||
| 26 | W11461499 | Tube, Process |
|
$ 65.01 | |||||
| 27 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 28 | W11580057 | Compressor (also Order The Following Lokring Parts) (Replaces: W11476127) |
|
Immediately | $ 400.16 | ||||
| 29 | W11204896 | Blade, Fan (Replaces: W10675036) |
|
$ 101.79 | |||||
| 24A | W11504445 | 5/4 Nr Ms 00 (heat Loop To Drier) |
|
Immediately | $ 28.92 | ||||
| 24B | W11504447 | 5/1.8 Nr Ms 00 (capillary Tube To Drier) |
|
Immediately | $ 43.90 | ||||
| 28A | W11504415 | 8.5/8 Nr Ms 00 (suction Tube To Compressor) |
|
Immediately | $ 25.89 | ||||
| 28B | W11504430 | 7/6 Nr Ms 00 (high Pressure Side To Compressor) |
|
Immediately | $ 27.13 | ||||
| 28C | W11506619 | 8 Nk Ms 00 (suction Line To Evaporator) |
|
Immediately | $ 25.88 | ||||
| 3A | W11504445 | 5/4 Nr Ms 00 (heat Loop To Drier) |
|
Immediately | $ 28.92 | ||||
| 3B | W11504432 | 6/5 Nr Ms 00 (suction Line To Condenser) |
|
Immediately | $ 25.88 | ||||
| 5A | W11504450 | 4/1.8 Nr Ms 00 (capillary Tube To Evaporator) |
|
Immediately | $ 46.52 | ||||
| 5B | W11506620 | 8 Nk Al 00 (suction Line To Evaporator) |
|
Immediately | $ 32.10 | ||||
| NI | ARI33D54712738355A8E3DB49CF8B59BEF7 | Refrigerant Charge 43 Grams (r600a) |
|
- |
