01 - Cover Sheet
02 - Cooktop Parts
03 - Chassis Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

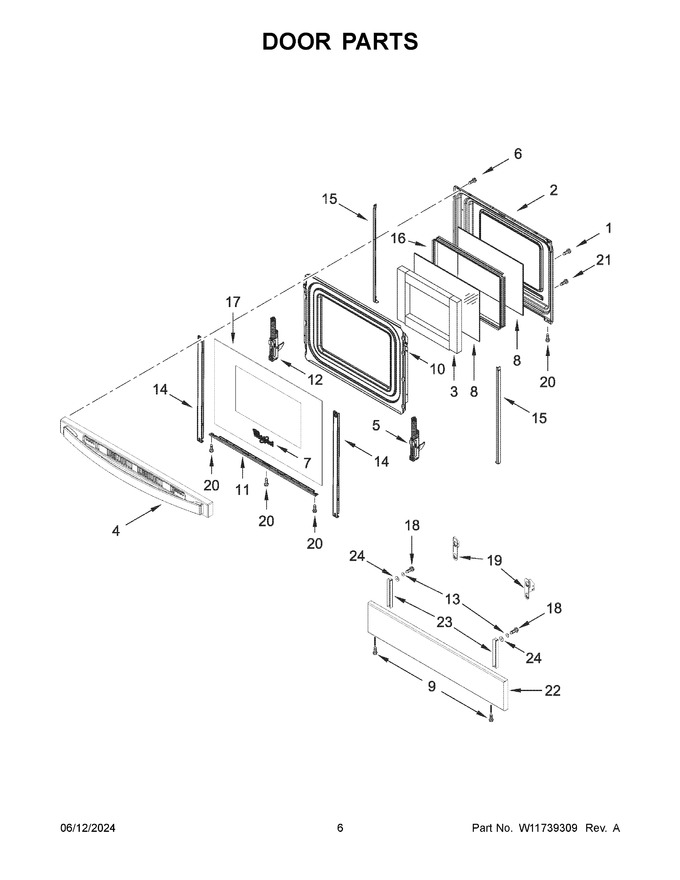

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 2 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 372.89 | ||||
| 3 | WPW10278991 | Insulation, Door Strip (Replaces: W10278991) |
|
Immediately | $ 101.37 | ||||
| 4 | W11553213 | Handle And Vent Assembly (black) (Replaces: W11039085) |
|
Immediately | $ 233.36 | ||||
| 5 | WPW10440013 | Hinge, Door (active) (Replaces: W10388635) |
|
Immediately | $ 63.80 | ||||
| 6 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 8.24 | ||||
| 7 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 63.13 | ||||
| 8 | WP8053948 | Glass, Inner (Replaces: 9758162) |
|
$ 178.28 | |||||
| 9 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 10 | W11539580 | Retainer, Insulation (Replaces: W11380222) |
|
$ 233.31 | |||||
| 11 | W11569689 | Trim, Lower Door (black) (Replaces: W11444043) |
|
Immediately | $ 60.08 | ||||
| 12 | WPW10440013 | Hinge, Door (active) (Replaces: W10440013) |
|
Immediately | $ 63.80 | ||||
| 13 | 8004P02460 | Spacer, Side Panel |
|
- | |||||
| 14 | W11502236 | Strap, Door (Replaces: W11379944) |
|
Immediately | $ 27.68 | ||||
| 15 | W10761018 | Trim, Door (black (left)) (Replaces: W10746436) |
|
Immediately | $ 53.77 | ||||
| 16 | WPW10316950 | Frame, Glass (Replaces: W10316950) |
|
Immediately | $ 90.09 | ||||
| 17 | W11702167 | Glass, Outer Door (black) (Replaces: W11687920) |
|
Immediately | $ 184.73 | ||||
| 18 | W11739957 | Screw (Replaces: W10673879) |
|
- | |||||
| 19 | W11096901 | Mounting Bracket, Toe Panel (left) |
|
- | |||||
| 20 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 21 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 22 | W11200105 | Panel, Toe (black) (Replaces: W11037793) |
|
- | |||||
| 23 | W11039147 | Bracket, Toe Panel |
|
- | |||||
| 24 | W11313010 | Washer (Replaces: W11184524) |
|
- | |||||
| 11A | W11594186 | Trim, Lower (white) (Replaces: W11444042) |
|
Immediately | $ 61.37 | ||||
| 15A | W10761014 | Trim, Door (black (right)) (Replaces: W10746435) |
|
Immediately | $ 72.96 | ||||
| 15B | WP8523172 | Trim, Side (white (left)) (Replaces: 8523172) |
|
Immediately | $ 69.93 | ||||
| 15C | WP8523166 | Trim, Side (white (right)) (Replaces: 8523166) |
|
Immediately | $ 84.23 | ||||
| 17A | WPW10409945 | Glass, Outer Door (white) (Replaces: W10409945) |
|
Immediately | $ 248.79 | ||||
| 19A | W11096902 | Mounting Bracket, Toe Panel (right) |
|
- | |||||
| 22A | W11200109 | Panel, Toe (white) (Replaces: W11037792) |
|
- | |||||
| 4A | W11590861 | Handle And Vent Assembly (white) (Replaces: W11242947) |
|
Immediately | $ 199.15 |
