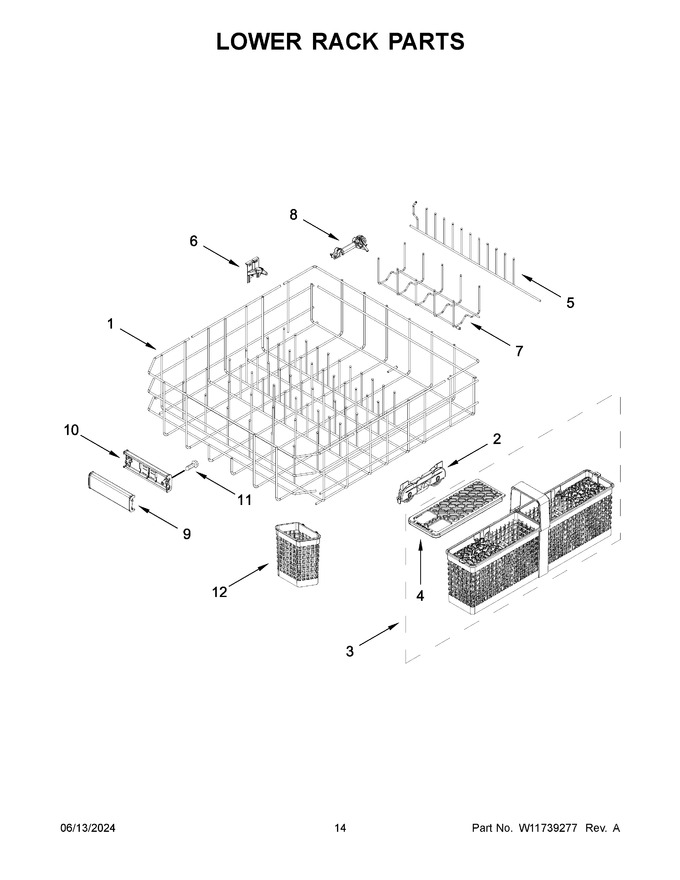

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11838895 | Dishrack, Lower (Replaces: W11224324) |
|
$ 177.40 | |||||
| 2 | W11551383 | Wheel & Transport Assembly (Replaces: W11133746) |
|
Immediately | $ 15.33 | ||||
| 3 | W11643665 | Silverware Basket Assembly (Replaces: W11291798) |
|
$ 92.90 | |||||
| 4 | W11267718 | Lid, Silverware Basket |
|
$ 28.56 | |||||
| 5 | W10728160 | Tine Row, Fold Down (Replaces: W10056272) |
|
Immediately | $ 49.07 | ||||
| 6 | W11736466 | Retainer, Flex Row (Replaces: W11268658) |
|
$ 23.49 | |||||
| 7 | W11702824 | Tine Row, Sliding (Replaces: W11505859) |
|
- | |||||
| 8 | W11702223 | Retainer, Sliding Tine Row (Replaces: W11409979) |
|
- | |||||
| 9 | W11392620 | Handle, Dishrack Front |
|
$ 119.47 | |||||
| 10 | W11268681 | Handle, Dishrack Rear |
|
Immediately | $ 116.36 | ||||
| 11 | WP9741232 | Screw (Replaces: 9741232) |
|
Immediately | $ 5.07 | ||||
| 12 | W11267721 | Utensil Basket |
|
$ 28.91 |
