SELECT A DIAGRAM

01 - Cover Sheet

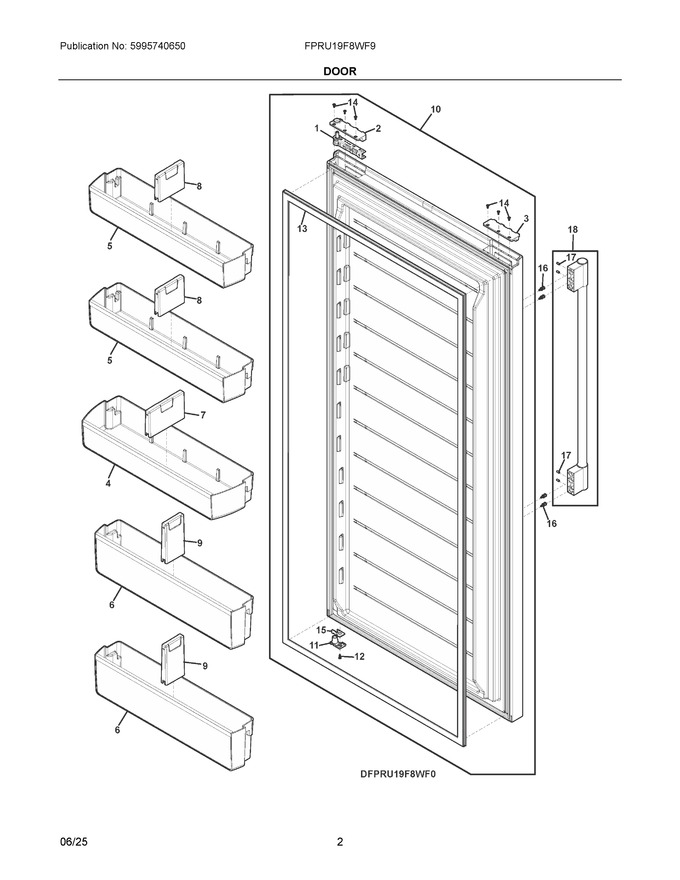

02 - Door


03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304524643		Closer Assembly, Door, Rh Upper			Immediately	$ 106.96
2	5304524623		Cover, Door Cap, Gray, Rh, Closer Side				$ 16.07
3	5304524626		Cover, Door Cap, Gray, Lh, Non-closer Side				$ 15.72
4	5304524631		Bin, Door, Galon   (Replaces: 5304529220)			Immediately	$ 165.86
5	5304529219		Bin, Door, 2 Liter			Immediately	$ 193.11
6	5304529221		Bin, Door, Tall Items			Immediately	$ 168.23
7	5304524846		Divider, Gallon, Door Bin				$ 32.13
8	5304524634		Divider, Door Bin, 2 Liter				$ 32.13
9	5304524635		Divider, Door Bin, Tall Items				$ 33.74
10	5304524738		Door Assembly, Complete, Stainless, Rh Swing			Immediately	$ 794.02
11	5304524745		Bearing, Door, Lower			Immediately	$ 8.84
12	241953903		Screw, Door Stop, Lower				$ 5.63
13	140190906861		Gasket, Door, Gray   (Replaces: 5304524887)			Immediately	$ 125.04
14	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 19.01
15	5304524767		Stop, Door, Lower Bearing			Immediately	$ 12.64
16	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 20.67
17	218755402		Screw-set, 10-32 X .500 In			Immediately	$ 36.67
18	5304536767		Handle Assembly, Stainless, W/set Screws   (Replaces: 5304501174)			Immediately	$ 124.18
NIA	241601002		Wrench, Allen		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
