01 - Cover Sheet

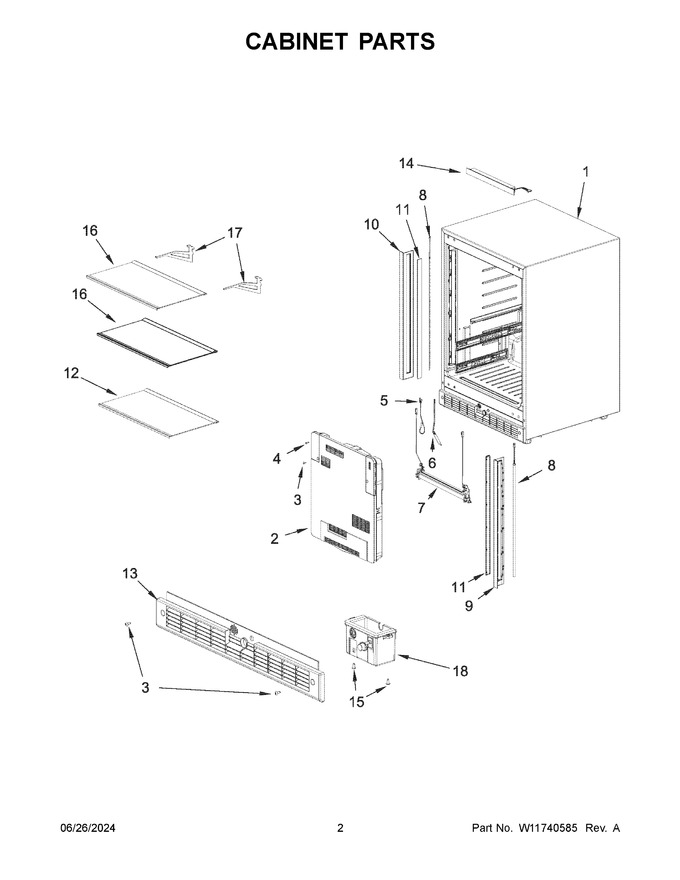

02 - Cabinet Parts
03 - Door Parts
04 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI312DF4305528C9341C495E6332910255 | Cabinet (not A Service Part) |
|
- | |||||
| 2 | W11774699 | Assembly, Evaporator Cover (Replaces: W11740822) |
|
$ 270.27 | |||||
| 3 | W11675284 | Screw (Replaces: W11371095) |
|
$ 15.94 | |||||
| 4 | W11375760 | Screw |
|
- | |||||
| 5 | W11266076 | Sensor, Defrost (Replaces: W11263884) |
|
$ 121.67 | |||||
| 6 | W11359415 | Fuse, Temperature |
|
$ 109.28 | |||||
| 7 | W11359416 | Defrost Holder And Heater |
|
- | |||||
| 8 | W11359423 | Assembly, Led |
|
$ 205.09 | |||||
| 9 | W11359424 | Cover, Led (right) (Replaces: W11424553) |
|
$ 109.02 | |||||
| 10 | W11395483 | Cover, Led (left) |
|
$ 100.97 | |||||
| 11 | W11359428 | Cover, Led |
|
$ 107.81 | |||||
| 12 | W11761116 | Assembly, Glass Tray (Replaces: W11740246) |
|
- | |||||
| 13 | W11360218 | Kick, Plate |
|
$ 121.28 | |||||
| 14 | W11424751 | Assembly, Control |
|
- | |||||
| 15 | W11371097 | Screw |
|
- | |||||
| 16 | W11761115 | Assembly, Glass Tray (Replaces: W11740245) |
|
- | |||||
| 17 | W11359432 | Holder, Shelf |
|
$ 149.57 | |||||
| 18 | W11359433 | Assembly, Switch Box |
|
$ 152.89 |
