Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11836636 Dishrack, Lower   (Replaces: W10525646) Special Order $ 177.40

2 W11551383 Wheel & Transport Assembly   (Replaces: W11133747) In-Stock Immediately $ 15.33

3 W11739699 Silverware Basket Assembly (includes Lids)   (Replaces: W11728229) Appelez-nous -
4 W10728160 Tine Row, Fold Down   (Replaces: W10056272) In-Stock Immediately $ 49.07

5 W11736466 Retainer, Flex Row   (Replaces: W11268658) Special Order $ 23.49


    View Diagram in Separate Window     Print Icon   Print Part List

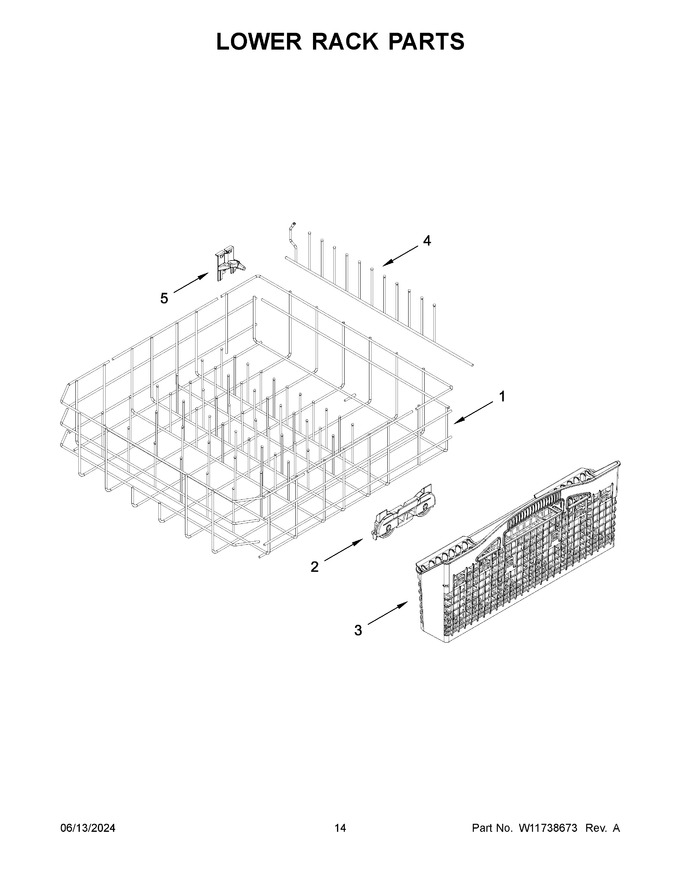

Diagram for WDPS7024RZ0
