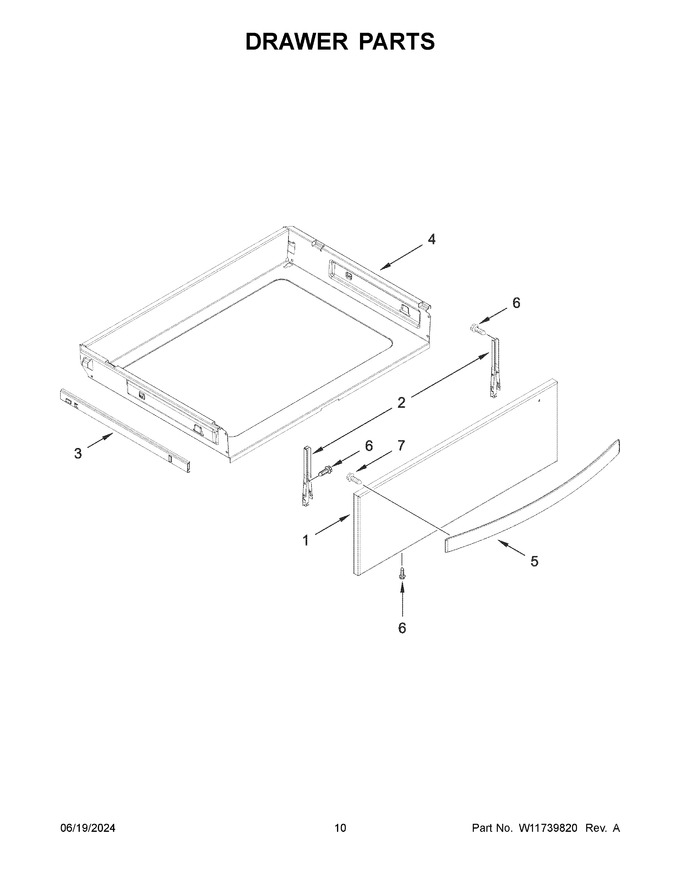

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11449686 | Panel, Drawer Front (black) |
|
$ 176.09 | |||||
| 2 | WPW10318026 | Bracket, Mounting (Replaces: W10318026) |
|
$ 39.27 | |||||
| 3 | WPW10441804 | Slide, Drawer (left) (Replaces: W10441804) |
|
Immediately | $ 108.20 | ||||
| 4 | W10813962 | Drawer, Storage (Replaces: W10688022) |
|
Immediately | $ 138.15 | ||||
| 5 | W11107394 | Handle, Door (black) (Replaces: W11022643) |
|
$ 229.46 | |||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 7 | W11846982 | Screw (Replaces: W10498399) |
|
$ 11.75 | |||||
| 1A | W11449681 | Panel, Drawer Front (white) |
|
$ 182.18 | |||||
| 3A | WPW10441805 | Slide, Drawer (right) (Replaces: W10441805) |
|
Immediately | $ 108.13 | ||||
| 5A | W11107407 | Handle, Door (white) (Replaces: W11022644) |
|
$ 237.48 |
