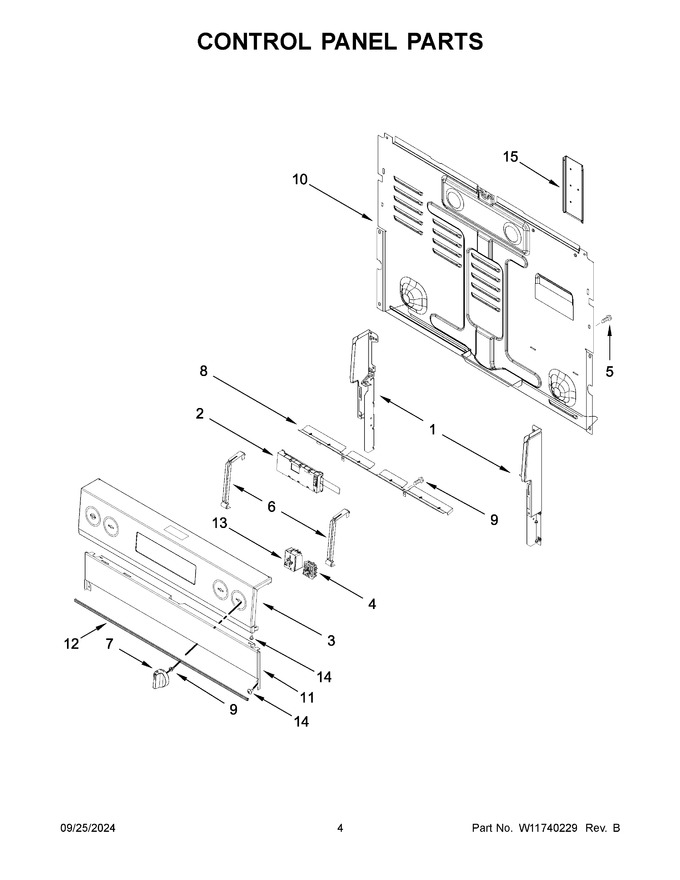

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11730342 | Endcap (black (left)) (Replaces: W11327041) |
|
$ 117.41 | |||||
| 2 | W11757145 | Control, Electronic (lcx) (black) (Replaces: W11652497) |
|
Immediately | $ 419.29 | ||||
| 3 | W11730494 | Panel, Console (black) (Replaces: W11299259) |
|
- | |||||
| 4 | W10857622 | Switch, Infinite (left Front And Right Front) (Replaces: W10437092) |
|
Immediately | $ 211.69 | ||||
| 5 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 6 | W11713812 | Bracket, Control (Replaces: W11290750) |
|
$ 30.37 | |||||
| 7 | W11730521 | Knob (black) (Replaces: W11621687) |
|
$ 41.17 | |||||
| 8 | W11730262 | Shield, Heat (Replaces: W11363806) |
|
$ 87.08 | |||||
| 9 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 10 | W11726751 | Cover, Upper Rear (Replaces: W11393668) |
|
$ 131.99 | |||||
| 11 | W11728260 | Panel, Lower (black) (Replaces: W11625413) |
|
$ 122.82 | |||||
| 12 | W11728258 | Gasket, Lower Panel (Replaces: W11643797) |
|
$ 58.00 | |||||
| 13 | W10911303 | Switch, Infinite (right Rear And Left Rear) (Replaces: W10578768) |
|
Immediately | $ 104.64 | ||||
| 14 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 15 | W11729912 | Cover, Rear Flue (Replaces: W11394231) |
|
Immediately | $ 106.53 | ||||
| 1A | W11730343 | Endcap (black (right)) (Replaces: W11327043) |
|
$ 117.41 |
