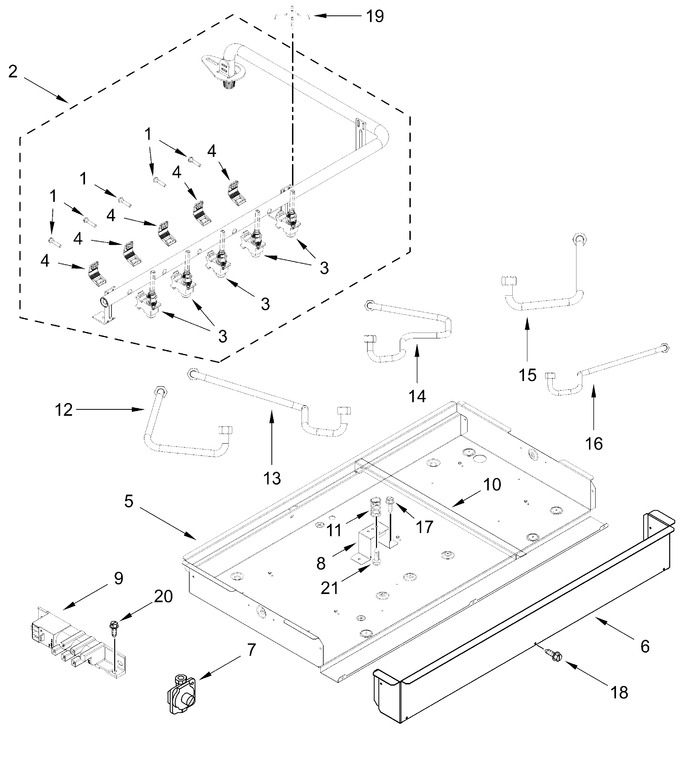

Burner Box, Gas Valves And Switch Parts
Cooktop, Burner And Grate Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8287057 | Screw (Replaces: W10743274) |
|
$ 11.84 | |||||
| 2 | W11704160 | Manifold Assembly (Replaces: W11576648) |
|
- | |||||
| 3 | W11703063 | Valve, Single (Replaces: W11629617) |
|
$ 30.33 | |||||
| 4 | 8287055 | Bracket, Single Valve |
|
$ 76.46 | |||||
| 5 | ARIDBAA9548A1EB15B27ADE369B6B57A1AD | Box, Burner (not Serviced) |
|
- | |||||
| 6 | W11704161 | Panel, Front (Replaces: W11596125) |
|
- | |||||
| 7 | W11087445 | Regulator, Pressure (Replaces: W10449143) |
|
Immediately | $ 197.04 | ||||
| 8 | W11741460 | Bracket, Orifice Holder (Replaces: W11721348) |
|
- | |||||
| 9 | W11703692 | Spark Module (Replaces: W11350452) |
|
Immediately | $ 96.65 | ||||
| 10 | W11704370 | Rail, Cooktop Reinforcement (Replaces: W11566318) |
|
- | |||||
| 11 | W10736113 | Spring, Orifice Holder |
|
- | |||||
| 12 | W11704365 | Tubing, Gas Burner (Replaces: W11592380) |
|
- | |||||
| 13 | W11704366 | Tubing, Gas Burner (Replaces: W11592384) |
|
- | |||||
| 14 | W11704367 | Tubing, Gas Burner (Replaces: W11592377) |
|
- | |||||
| 15 | W11704368 | Tubing, Gas Burner (Replaces: W11592373) |
|
- | |||||
| 16 | W11704369 | Tubing, Gas Burner (Replaces: W11592382) |
|
- | |||||
| 17 | W10443110 | Screw |
|
Immediately | $ 15.25 | ||||
| 18 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 19 | W11768651 | Seal, Switch Shaft (Replaces: W11507167) |
|
$ 20.30 | |||||
| 20 | 7101P42660 | Screw |
|
- | |||||
| 21 | W11704453 | Screw (Replaces: W11691929) |
|
- | |||||
| ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 | (left Rear) |
|
- | ||||||
| W10216179 | Ring, Wok |
|
$ 26.46 | ||||||
| ARI76BF577D359F4F7B6AC1C45BB9FB0006 | (left Front) |
|
- | ||||||
| ARI7A67B14AEA62F6D2A04BCF7D52CA12EE | (center) |
|
- | ||||||
| ARIF2E7B6BD22672B9DC44FA7CEA7C6567E | Optional Accessory Part (not Included) |
|
- | ||||||
| WA906B | Scraper, Cooktop |
|
Immediately | $ 5.40 | |||||
| ARI130620F5738F97FA53E648D69A4CE80B | (left Front, Left Rear) |
|
- | ||||||
| W11702872 | Valve, Single (Replaces: W11629615) |
|
$ 31.38 | ||||||
| ARI366F739729E30F8F054E7BD9138DF341 | (center And Right Front) |
|
- | ||||||
| W11702873 | Valve, Single (Replaces: W11629616) |
|
$ 30.33 | ||||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- | ||||||
| ARIA12C7E5D311C54B1AACBC1820DF34957 | (right Front) |
|
- |
