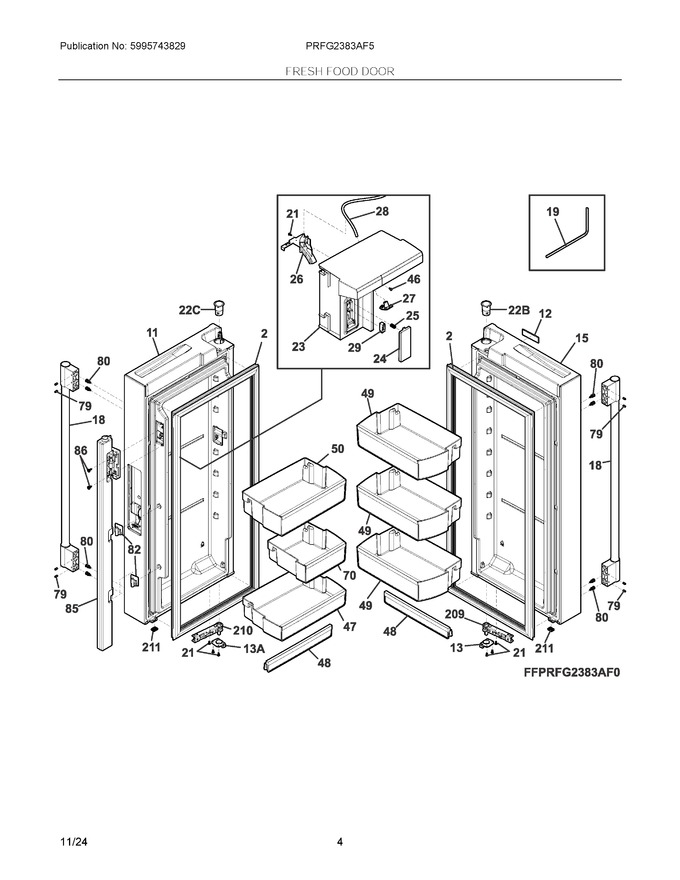

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Freezer Drawer, Baskets
03 - Fresh Food Door
04 - Cabinet
05 - Shelves
06 - Cooling System
07 - Controls
08 - Ice Maker
09 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241778315 | Gasket, Door, Gray, Fresh Food, Magnetic (Replaces: 241778307) |
|
Immediately | $ 99.87 | ||||
| 11 | 5304533072 | Door Assembly, Fresh Food, Stainless, Lh |
|
Immediately | $ 312.84 | ||||
| 12 | 809108704 | Nameplate, Frig Pro (Replaces: 809108701) |
|
Immediately | $ 49.10 | ||||
| 13 | 5304508039 | Door Stop, Assembly, Rh, W/bushing |
|
$ 25.34 | |||||
| 15 | 5304533071 | Door Assembly, Fresh Food, Stainless, Rh |
|
Immediately | $ 298.48 | ||||
| 18 | 5304536767 | Handle Assembly, Stainless, W/set Screws (Replaces: 5304501174) |
|
Immediately | $ 124.18 | ||||
| 19 | 5304508270 | Wrench, Allen , Set Screw |
|
Immediately | $ 23.71 | ||||
| 21 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 19.01 | ||||
| 23 | 5304530964 | Housing, Water Dispenser |
|
Immediately | $ 108.48 | ||||
| 24 | 5304530870 | Button, Water Dispenser, White |
|
$ 45.78 | |||||
| 25 | 5304519199 | Spring, Paddle Assembly |
|
Immediately | $ 6.79 | ||||
| 26 | 5304531239 | Retainer, Water Tube |
|
Immediately | $ 15.34 | ||||
| 27 | 5304530965 | Nozzle, Water Dispenser |
|
Immediately | $ 196.08 | ||||
| 28 | 218976449 | Tube, Water, .31" - 98.43", Natural, Dispenser (Replaces: 218976442) |
|
Immediately | $ 22.38 | ||||
| 29 | 5304523072 | Switch, Disp Paddle |
|
Immediately | $ 51.18 | ||||
| 45 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 15.75 | |||||
| 46 | 240383413 | Screw, 19.1mm , White |
|
$ 6.74 | |||||
| 47 | 5304537222 | Door Bin, Standard, Lh Door (Replaces: 5304532904) |
|
Immediately | $ 63.62 | ||||
| 48 | 5304532856 | Door Bin, Clip-on, Lower |
|
Immediately | $ 18.31 | ||||
| 49 | 5304536414 | Door Bin, Standard, Rh Door (Replaces: 5304532854) |
|
Immediately | $ 60.86 | ||||
| 50 | 5304537166 | Door Bin, Full Shelf, Lh Door (Replaces: 5304532855) |
|
- | |||||
| 70 | 5304537167 | Door Bin, Dairy (Replaces: 5304532857) |
|
- | |||||
| 79 | 218755405 | Screw, Set, 10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 22.84 | ||||
| 80 | 218755504 | Screw, Shoulder , #10-ab, Handle Mounting |
|
Immediately | $ 20.67 | ||||
| 82 | 241779401 | Hinge-mullion, Upper/lower, Flipper |
|
Immediately | $ 24.43 | ||||
| 83 | 241812202 | Magnet, Door |
|
$ 80.33 | |||||
| 85 | 5304530853 | Mullion Assembly, Flipper Gray, 85 #, W/heater |
|
Immediately | $ 124.68 | ||||
| 86 | 242015001 | Screw, 8-18 X /2 |
|
Immediately | $ 18.11 | ||||
| 209 | 5304526201 | Rh Door Closer W/o Inner Washr |
|
Immediately | $ 94.36 | ||||
| 210 | 5304526202 | Lh Door Closer W/o Inner Washr |
|
Immediately | $ 109.27 | ||||
| 211 | 5304508077 | Bumper, Door, Bottom |
|
$ 13.48 | |||||
| 13A | 5304508038 | Door Stop, Assembly , Lh, W/bushing |
|
Immediately | $ 25.28 | ||||
| 22B | 241760403 | Bearing, Hinge, Top, Rh Door |
|
Immediately | $ 21.26 | ||||
| 22C | 241760401 | Bearing, Hinge, Top, Lh Door |
|
Immediately | $ 21.26 | ||||
| NI | 241806601 | Connector, Water Tube, 5/16 To 5/16, Straight (Replaces: 242103001) |
|
Immediately | $ 78.40 | ||||
| NIA | 5304508776 | Lock Washer, External Tooth, #8 |
|
$ 4.83 | |||||
| NIA | 5304538337 | Harness, Wiring, Door (Replaces: 5304530998) |
|
Immediately | $ 36.00 | ||||
| NIA | 242068601 | Bumper, Flipper Mullion |
|
$ 16.01 | |||||
| NIB | 5304531012 | Harness, Wiring, Water Dispenser |
|
Immediately | $ 44.77 |
