01 - Cover Sheet


02 - Burner Box Parts


03 - Cooktop, Burner And Grate Parts


04 - Chassis Parts


05 - Oven Parts


06 - Venting Parts

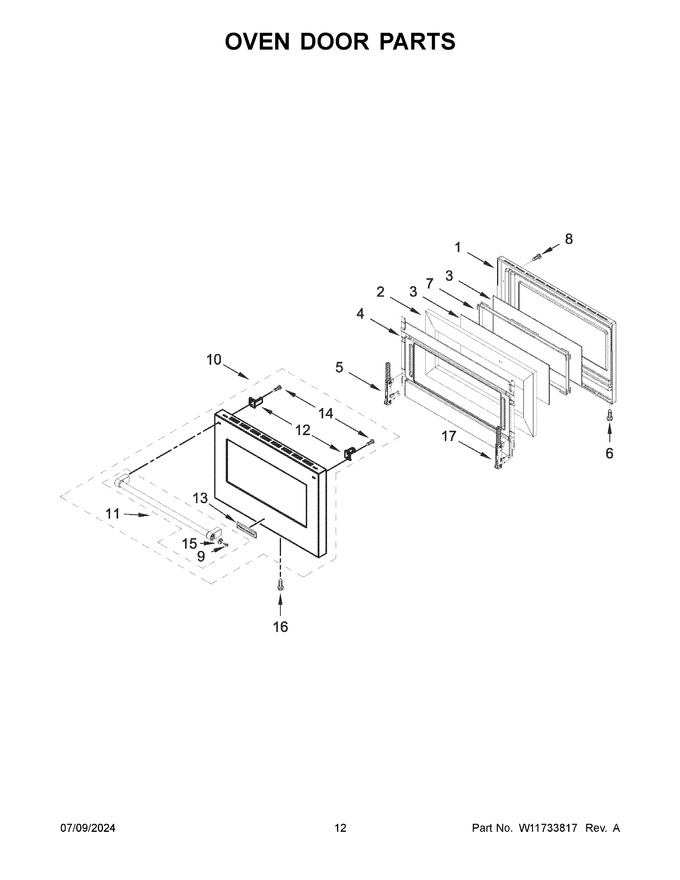

07 - Oven Door Parts


08 - Internal Oven Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11334152		Liner, Door   (Replaces: W11036772)				$ 417.57
2	W11688331		Insulation, Door   (Replaces: W10884823)				$ 46.39
3	W11334153		Glass, Inner   (Replaces: W11036791)				$ 125.70
4	W11194820		Retainer, Glass				$ 190.50
5	W11568941		Hinge, Door (left)   (Replaces: W11096978)			Immediately	$ 115.01
6	W11193480		Screw   (Replaces: W10607120)				$ 14.72
7	W11194814		Frame, Glass			Immediately	$ 349.83
8	W11712404		Screw   (Replaces: W10898280)			Immediately	$ 14.77
9	W10920281		Screw   (Replaces: W10656499)			Immediately	$ 8.95
10	W11735955		Outer Door Assembly (includes Handle)   (Replaces: W11712137)		Appelez-nous	-
11	W11512747		Handle Assembly   (Replaces: W11362709)		Appelez-nous	-
12	W11317513		Bracket, Handle   (Replaces: W11197830)				$ 78.81
13	W10909682		Badge   (Replaces: W10518672)			Immediately	$ 76.20
14	WPW10276043		Screw   (Replaces: W10276043)				$ 7.30
15	W11361074		Medallion, Handle		Appelez-nous	-
16	W10162096		Screw				$ 21.90
17	W11568813		Hinge, Door (right)   (Replaces: W11096977)			Immediately	$ 84.80
