SELECT A DIAGRAM
New Model Search:

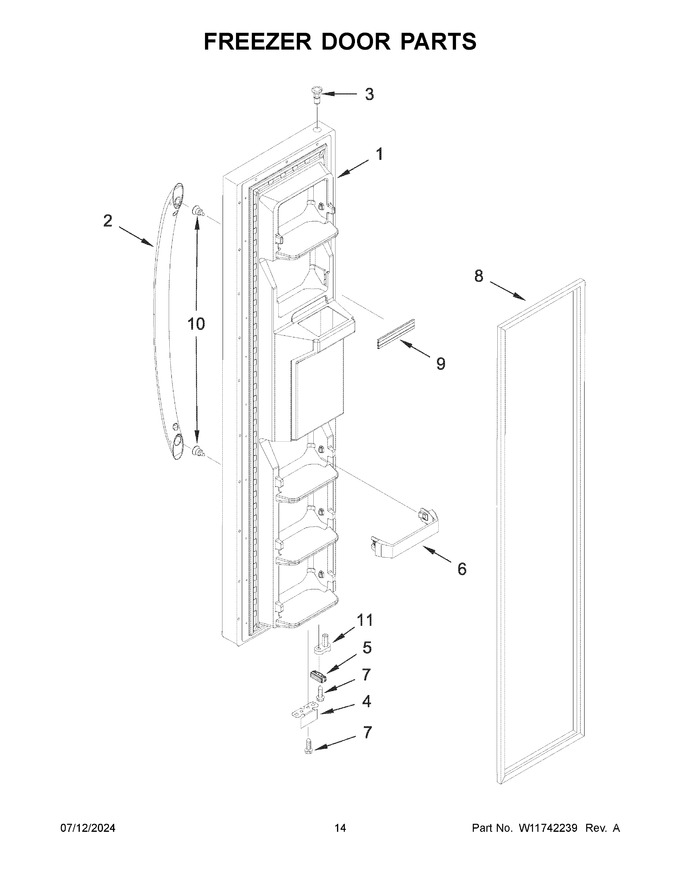

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW11032721 | Door, Freezer (includes Gasket And Dispenser Parts) (white) (Replaces: W11032721) |
|
$ 1,017.41 | |||||
| 2 | W10210942A | Handle (white) (Replaces: W10210942) |
|
$ 129.53 | |||||
| 3 | WP2182181 | Thimble (Replaces: 2200087) |
|
$ 8.15 | |||||
| 4 | W11557261 | Bracket, Door Stop (Replaces: W11481757) |
|
Immediately | $ 18.67 | ||||
| 5 | W11687672 | Bumper, Door (white) (Replaces: W10407175) |
|
$ 14.93 | |||||
| 6 | WP2309717 | Trim, Door (Replaces: 2309717) |
|
$ 58.64 | |||||
| 7 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 11.39 | |||||
| 8 | 2159072 | Gasket, Door (beige) (Replaces: W10911494) |
|
$ 323.60 | |||||
| 9 | WPW10307490 | Trim, Door Shelf (Replaces: W10307492) |
|
Immediately | $ 24.27 | ||||
| 10 | WPW10288153 | Screw (Replaces: W10288153) |
|
Immediately | $ 9.65 | ||||
| 11 | W11661926 | Thimble, Cam (Replaces: W10900532) |
|
$ 14.02 |
