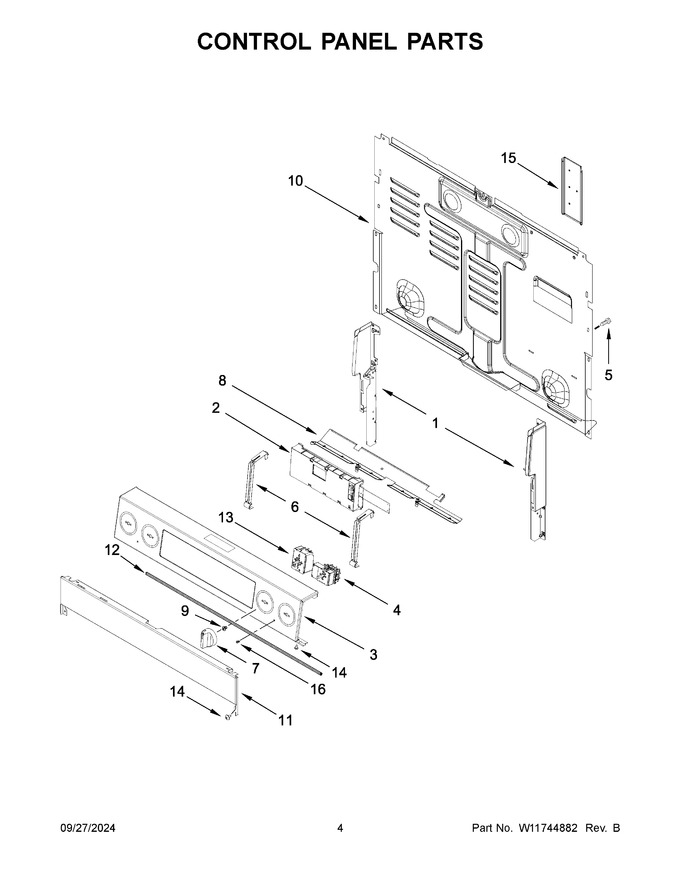

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11728322		Endpost, Console (black (left))   (Replaces: W11625423)		Appelez-nous	-
2	W11728323		Control, Electronic (lcx) (black)   (Replaces: W11637092)		Appelez-nous	-
3	W11728259		Panel, Console (black)   (Replaces: W11730178)		Appelez-nous	-
4	W10857622		Switch, Infinite (left Front And Right Front)   (Replaces: W10437092)			Immediately	$ 211.69
5	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
6	W11728256		Bracket, Control   (Replaces: W11371599)		Appelez-nous	-
7	W11728257		Knob (stainless)   (Replaces: W11584001)			Immediately	$ 42.37
8	W11747326		Shield, Heat   (Replaces: W11736649)		Appelez-nous	-
9	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
10	W11726751		Cover, Upper Rear   (Replaces: W11393668)				$ 131.99
11	W11728260		Panel, Lower (black)   (Replaces: W11625413)				$ 122.82
12	W11728258		Gasket, Lower Panel   (Replaces: W11643797)				$ 58.00
13	W10911303		Switch, Infinite (right Rear And Left Rear)   (Replaces: W10578768)			Immediately	$ 104.64
14	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
15	W11747327		Cover, Rear Flue   (Replaces: W11736681)		Appelez-nous	-
16	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 6.26
11A	W11726812		Panel, Lower (white)   (Replaces: W11625412)				$ 122.82
1A	W11728320		Endpost, Console (black (right))   (Replaces: W11625420)				$ 117.71
1B	W11726987		Endcap (white (left))   (Replaces: W11625422)		Appelez-nous	-
1C	W11726989		Endcap (white (right))   (Replaces: W11625418)		Appelez-nous	-
3A	W11726810		Panel, Console (white)   (Replaces: W11730177)		Appelez-nous	-
