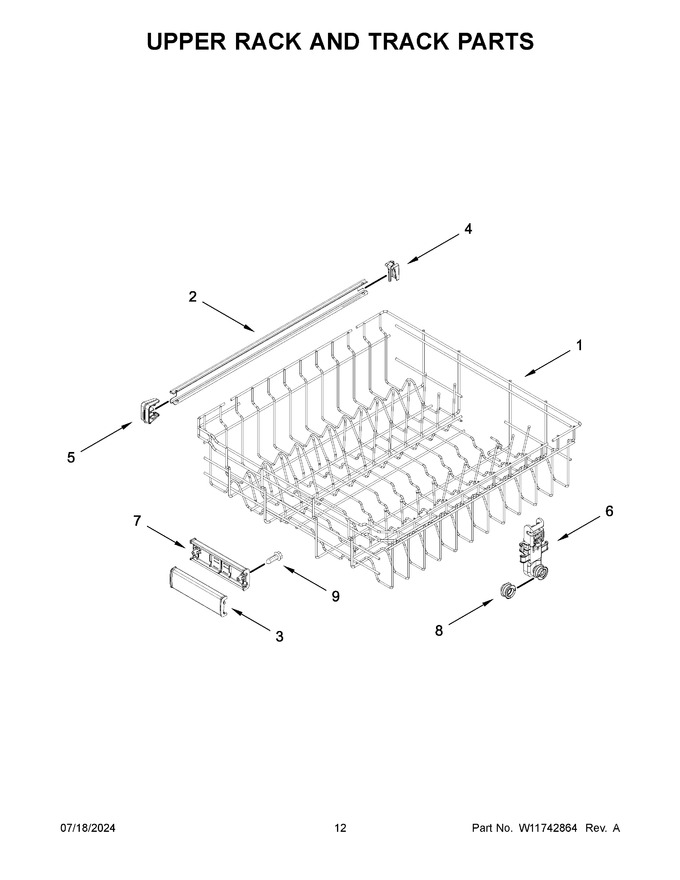

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11678956		Dishrack, Upper   (Replaces: W10847875)				$ 195.83
2	W11561204		Track, Dishrack   (Replaces: W11441109)			Immediately	$ 38.56
3	W11268683		Handle, Dishrack Front		Appelez-nous	-
4	W11579392		Track Stop, Rear   (Replaces: W11084872)			Immediately	$ 20.41
5	W11545307		Track Stop, Front   (Replaces: W11084874)			Immediately	$ 15.45
6	W11579563		Mount Assembly   (Replaces: W11133748)			Immediately	$ 9.29
7	W11291785		Handle, Dishrack Rear		Appelez-nous	-
8	W11568789		Wheel   (Replaces: W11048219)			Immediately	$ 15.92
9	WP9741232		Screw   (Replaces: 9741232)			Immediately	$ 5.07
