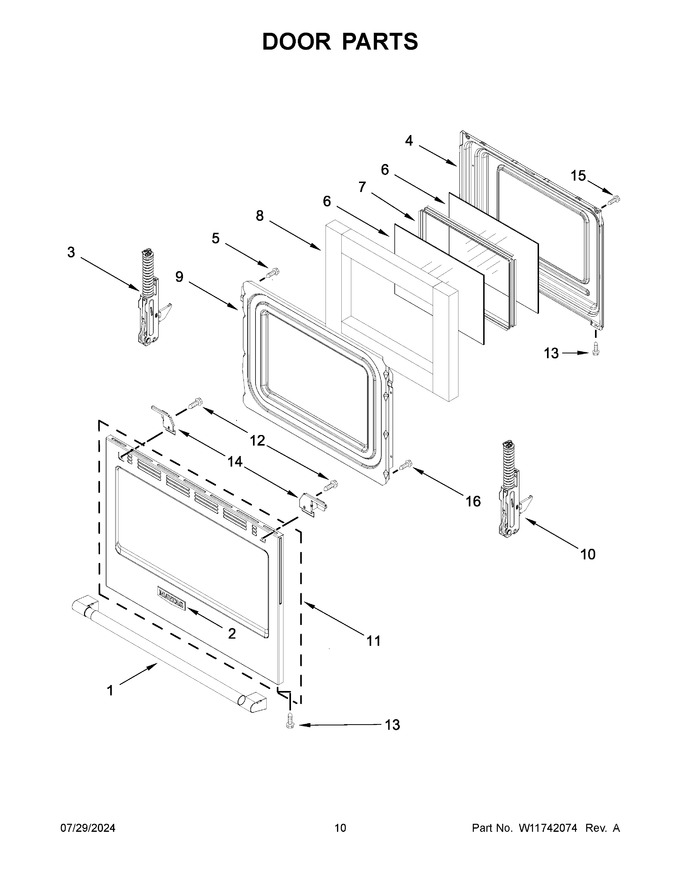

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11648982		Handle, Oven Door (stainless)   (Replaces: W11495825)				$ 219.85
2	W11648754		Badge   (Replaces: W11628148)			Immediately	$ 42.40
3	WPW10440013		Hinge, Door (active)   (Replaces: W10388635)			Immediately	$ 63.80
4	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 372.89
5	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
6	WP8053948		Glass, Inner   (Replaces: 9758162)				$ 178.28
7	WPW10316950		Frame, Glass   (Replaces: W10316950)			Immediately	$ 90.09
8	WPW10278991		Insulation, Door Strip   (Replaces: W10278991)			Immediately	$ 101.37
9	W11539580		Retainer, Insulation   (Replaces: W11380222)				$ 233.31
10	WPW10440013		Hinge, Door (active)   (Replaces: W10440013)			Immediately	$ 63.80
11	W11750809		Outer Door Skin And Glass Assembly (stainless (includes Badge))   (Replaces: W11631954)				$ 767.92
12	WP3196154		Screw   (Replaces: 3196154)				$ 8.44
13	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 8.80
14	W11726808		Bracket, Handle Mount (left)   (Replaces: W11157607)		Appelez-nous	-
15	WPW10200660		Screw   (Replaces: W10200660)			Immediately	$ 8.24
16	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 8.26
14A	W11726809		Bracket, Handle Mount (right)   (Replaces: W11417442)				$ 29.69
