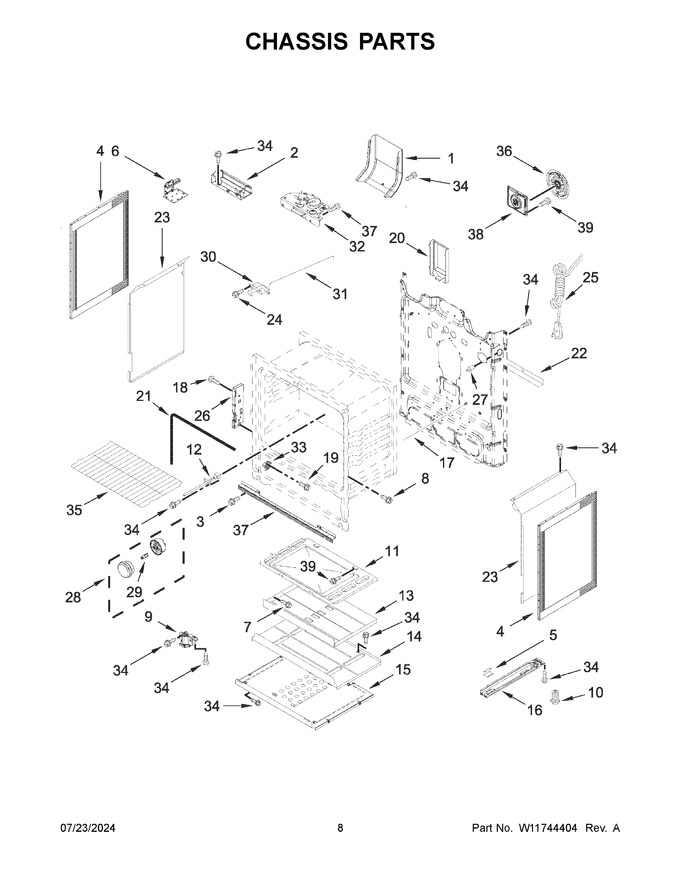

05 - Chassis Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11730239 | Box, Flue (Replaces: W11366110) |
|
- | |||||
| 2 | W11730237 | Shield, Flue (Replaces: W11279866) |
|
- | |||||
| 3 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 7.47 | |||||
| 4 | W11730303 | Panel, Side (black) (Replaces: W11445467) |
|
Immediately | $ 160.65 | ||||
| 5 | W10137382 | Clip, Panel |
|
Immediately | $ 43.58 | ||||
| 6 | W11727012 | Bracket, Manifold (Replaces: W11287215) |
|
- | |||||
| 7 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 13.25 | ||||
| 8 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 9 | WPW10341186 | Front Foot Assembly (Replaces: W10341186) |
|
Immediately | $ 29.33 | ||||
| 10 | WPW10058460 | Foot, Leveling (Replaces: W10058460) |
|
Immediately | $ 7.42 | ||||
| 11 | W11730226 | Bottom, Oven (Replaces: W11602073) |
|
$ 207.95 | |||||
| 12 | W10833885 | Sensor (Replaces: W10586204) |
|
Immediately | $ 143.70 | ||||
| 13 | 8053967 | Baffle, Burner Oven |
|
$ 284.36 | |||||
| 14 | 8053969 | Shield, Heat |
|
$ 101.74 | |||||
| 15 | W11730232 | Shield, Lower (Replaces: W11640074) |
|
- | |||||
| 16 | W11818353 | Base Rail Assembly (left) (Replaces: W10390008) |
|
$ 56.39 | |||||
| 17 | 9757239 | Rod, Door Switch |
|
$ 86.73 | |||||
| 18 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 19 | W11684512 | Screw (Replaces: 3400080) |
|
$ 13.33 | |||||
| 20 | W10158780 | Cover, Rear Fan |
|
$ 106.63 | |||||
| 21 | W11542153 | Seal, Door (Replaces: W11491751) |
|
Immediately | $ 45.18 | ||||
| 22 | W10435470 | Brace, Main Back |
|
$ 73.57 | |||||
| 23 | W11379353 | Retainer, Insulation (left) |
|
- | |||||
| 24 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 25 | W11730265 | Cord, Power (Replaces: W11661976) |
|
$ 76.19 | |||||
| 26 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 8.39 | ||||
| 27 | W11620712 | Switch, Door (Replaces: W11511828) |
|
Immediately | $ 41.68 | ||||
| 28 | W11707255 | Light Assembly (Replaces: W11634772) |
|
Immediately | $ 36.68 | ||||
| 29 | WPW10571723 | Bulb, Halogen 40 Watts (Replaces: W10571723) |
|
Immediately | $ 24.94 | ||||
| 30 | WP9761013 | Front Door Latch Assembly (Replaces: 9761013) |
|
$ 230.72 | |||||
| 31 | W10078370 | Rod, Push Latch |
|
$ 85.72 | |||||
| 32 | WPW10107820 | Rear Door Latch Assembly (Replaces: W10107820) |
|
$ 278.60 | |||||
| 33 | W10807823 | Glide, Drawer Front (Replaces: W10674705) |
|
Immediately | $ 17.37 | ||||
| 34 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 35 | W11520287 | Rack, Oven (Replaces: W11173792) |
|
Immediately | $ 52.19 | ||||
| 36 | W11527111 | Fan, Convection (Replaces: W11353930) |
|
Immediately | $ 148.29 | ||||
| 37 | W11464547 | Bracket, Front Frame |
|
$ 41.30 | |||||
| 38 | W11730217 | Cover, Conv Fan (Replaces: W11373155) |
|
- | |||||
| 39 | W10516115 | Screw |
|
$ 13.07 | |||||
| 16A | W11818353 | Base Rail Assembly (right) (Replaces: W10390007) |
|
$ 56.39 | |||||
| 23A | W11379943 | Retainer, Insulation (right) |
|
- | |||||
| NI | W11684776 | Insulation, Wrap (Replaces: W10818362) |
|
- | |||||
| NI | W11727016 | Insulation, Back (Replaces: W11407376) |
|
- | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- |
