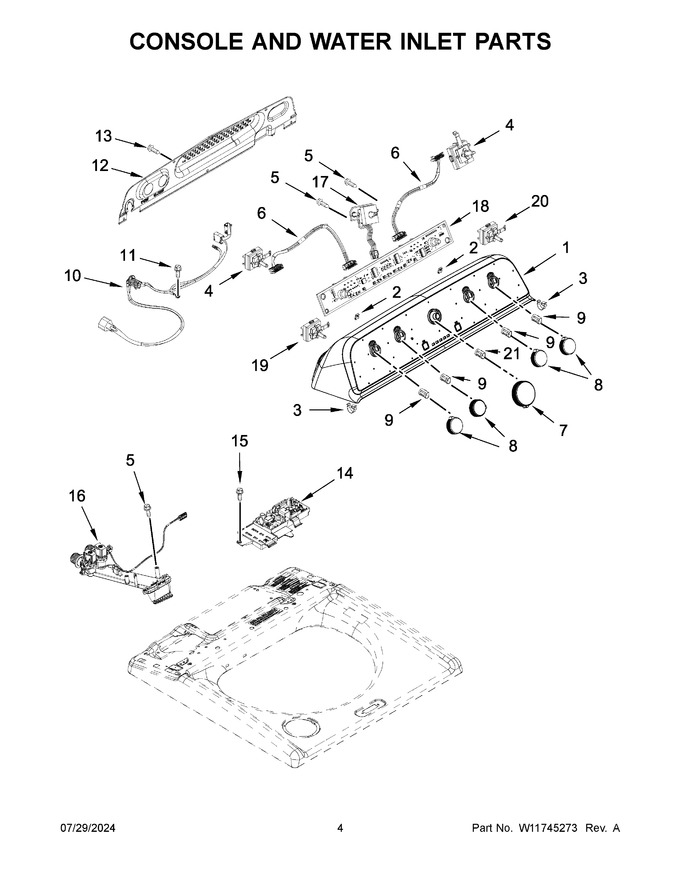

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11755511 | Console Assembly (Replaces: W11656596) |
|
- | |||||
| 2 | W11213336 | Nut, "u (Replaces: W10298336) |
|
$ 7.74 | |||||
| 3 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 4 | W10859568 | Switch, Rotary Encoder (5 Position) (Replaces: W10414411) |
|
Immediately | $ 179.35 | ||||
| 5 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.86 | ||||
| 6 | W11807283 | Harness, Upper (Replaces: W11437973) |
|
$ 47.62 | |||||
| 7 | W11675852 | Knob, Large (Replaces: W11328381) |
|
Immediately | $ 29.75 | ||||
| 8 | W11625514 | Knob, Small (Replaces: W11398762) |
|
Immediately | $ 35.11 | ||||
| 9 | WP688805 | Clip, Spring (Replaces: 688805) |
|
Immediately | $ 7.81 | ||||
| 10 | W11513259 | Power Cord Assembly (Replaces: W11335102) |
|
Immediately | $ 40.31 | ||||
| 11 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.76 | ||||
| 12 | W10611544 | Panel, Console Rear Cover |
|
$ 324.98 | |||||
| 13 | W11685943 | Screw (Replaces: W10660565) |
|
$ 14.26 | |||||
| 14 | W11735316 | Control Unit Assembly, Machine And Motor (Replaces: W11725664) |
|
Immediately | $ 297.59 | ||||
| 15 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 16 | W11513255 | Water Inlet Assembly (complete) (Replaces: W11385821) |
|
Immediately | $ 91.85 | ||||
| 17 | W11675700 | Encoder, Pca (Replaces: W11609449) |
|
$ 303.71 | |||||
| 18 | W11675701 | Hmi (Replaces: W11612331) |
|
Immediately | $ 304.75 | ||||
| 19 | W11168256 | Switch, Rotary Encoder (2 Position) (Replaces: W10414381) |
|
Immediately | $ 208.68 | ||||
| 20 | WPW10414398 | Switch, Rotary Encoder (4 Position) (Replaces: W10414398) |
|
$ 190.06 | |||||
| 21 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.81 |
