Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11728322 Console, Endcap (black, Left)   (Replaces: W11625423) Appelez-nous -
2 W11747326 Shield, Heat   (Replaces: W11736649) Appelez-nous -
3 W11730261 Console (stainless)   (Replaces: W11371988) Special Order $ 376.41

4 W11839349 User Interface   (Replaces: W11400084) Appelez-nous -
5 W10898291 Module, Spark Dsi   (Replaces: W10818365) In-Stock Immediately $ 365.64

6 W10491985 Screw   (Replaces: 3196160) In-Stock Immediately $ 7.55

7 W11730240 Panel, Lower (stainless)   (Replaces: W11625438) Special Order $ 223.68

8 WP3196557 Screw   (Replaces: 3196169) In-Stock Immediately $ 7.95

9 W11703692 Spark Module   (Replaces: W11350452) In-Stock Immediately $ 96.65

10 W11727014 Cover, Upper Rear   (Replaces: W11393669) Appelez-nous -
11 W11233072 Screw   (Replaces: 3196178) In-Stock Immediately $ 14.72

W11728320 Console, Endcap (black, Right)   (Replaces: W11625420) Special Order $ 117.71

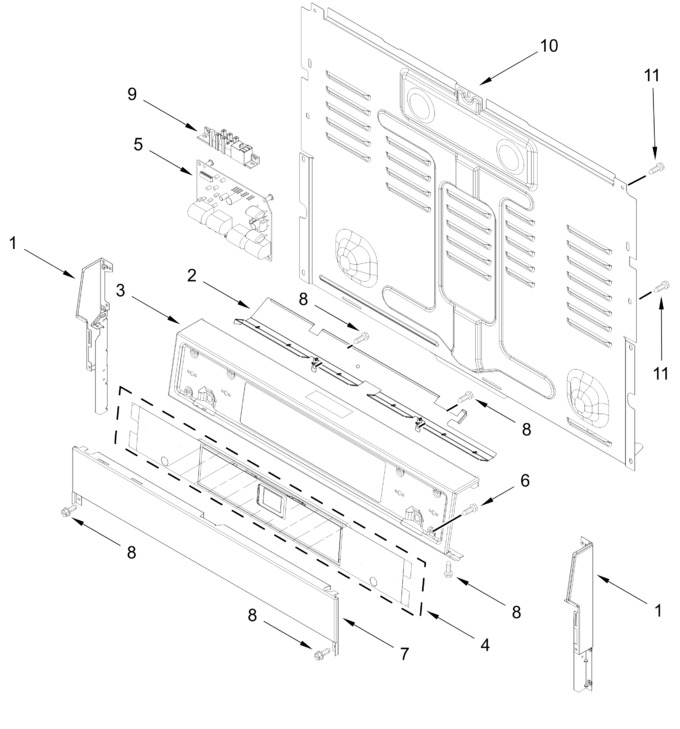

    View Diagram in Separate Window     Print Icon   Print Part List
