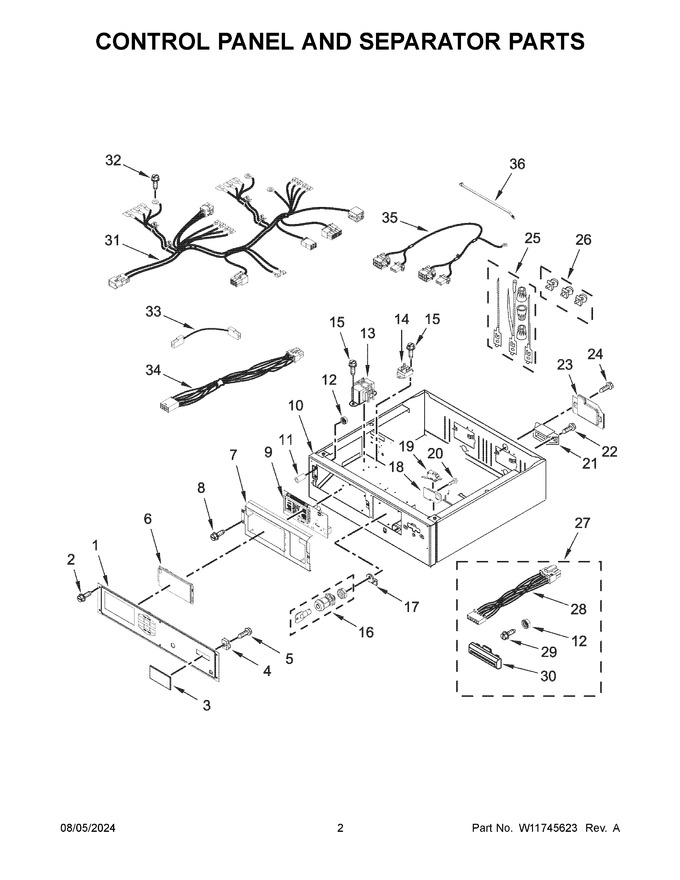

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11743890 | Facia (Replaces: W11651084) |
|
- | |||||
| 2 | WPW10131119 | Screw (Replaces: W10386302) |
|
$ 7.30 | |||||
| 3 | W11164066 | Cover, Card Reader (Replaces: W10137769) |
|
- | |||||
| 4 | W10145157 | Retainer, Facia Cover |
|
- | |||||
| 5 | 3400618 | Screw |
|
$ 67.94 | |||||
| 6 | WPW10133268 | Cover, Display (Replaces: W10133268) |
|
$ 73.93 | |||||
| 7 | W10657185 | Plate, Control Mounting |
|
- | |||||
| 8 | W10756178 | Screw (Replaces: W10140652) |
|
$ 6.29 | |||||
| 9 | W11743892 | Cntrl-elec (Replaces: W11582595) |
|
- | |||||
| 10 | W11743893 | Collar Not Illustrated (Replaces: W11455510) |
|
- | |||||
| 11 | W11117166 | Standoff, Circuit Board (Replaces: W10133514) |
|
- | |||||
| 12 | WPW10139046 | Nut (Replaces: W10139046) |
|
$ 9.23 | |||||
| 13 | WPW10133285 | Transformer 120vac To 22.5vac (Replaces: W10133285) |
|
$ 214.70 | |||||
| 14 | W10827406 | Relay, Motor |
|
- | |||||
| 15 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 16 | W11231586 | Assembly, Lock (Replaces: W11223375) |
|
- | |||||
| 17 | W11165684 | Cam, Locking (Replaces: W10913660) |
|
$ 9.57 | |||||
| 18 | W10160652 | Bracket-switch |
|
- | |||||
| 19 | WPW10447152 | Switch, Service Access (Replaces: W10447152) |
|
$ 43.26 | |||||
| 20 | 3400408 | Screw |
|
- | |||||
| 21 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 24.17 | |||||
| 22 | W11676450 | Screw (Replaces: 3400000) |
|
$ 14.76 | |||||
| 23 | W10850065 | Cover, Terminal Block |
|
- | |||||
| 24 | WP90767 | Screw (Replaces: 3390814) |
|
Immediately | $ 8.25 | ||||
| 25 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 106.04 | ||||
| 26 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 55.66 | ||||
| 27 | W11498818 | Instructions, Installation (card Reader) |
|
- | |||||
| 28 | WPW10239515 | Harness, Card Reader (Replaces: W10239515) |
|
$ 155.18 | |||||
| 29 | WPW10143462 | Screw (Replaces: W10143462) |
|
$ 6.30 | |||||
| 30 | W10163036 | Bezel |
|
$ 21.42 | |||||
| 31 | W10807485 | Harness, Collar (includes Motor Relay) |
|
- | |||||
| 32 | W10850756 | Screw (Replaces: W10773242) |
|
$ 8.20 | |||||
| 33 | W10769481 | Jumper, Coin Box |
|
- | |||||
| 34 | W10111027 | Jumper, Transformer |
|
$ 48.10 | |||||
| 35 | W10807493 | Jumper, Lower To Collar |
|
- | |||||
| 36 | WPW10155270 | Cable Tie (Replaces: W10155270) |
|
$ 7.02 | |||||
| 10A | WP33001882 | Screw, Collar To Cabinet Flange (Replaces: 337686) |
|
$ 83.71 | |||||
| 10B | 3400500 | Bolt, Collar To Lower Cabinet |
|
Immediately | $ 14.04 |
