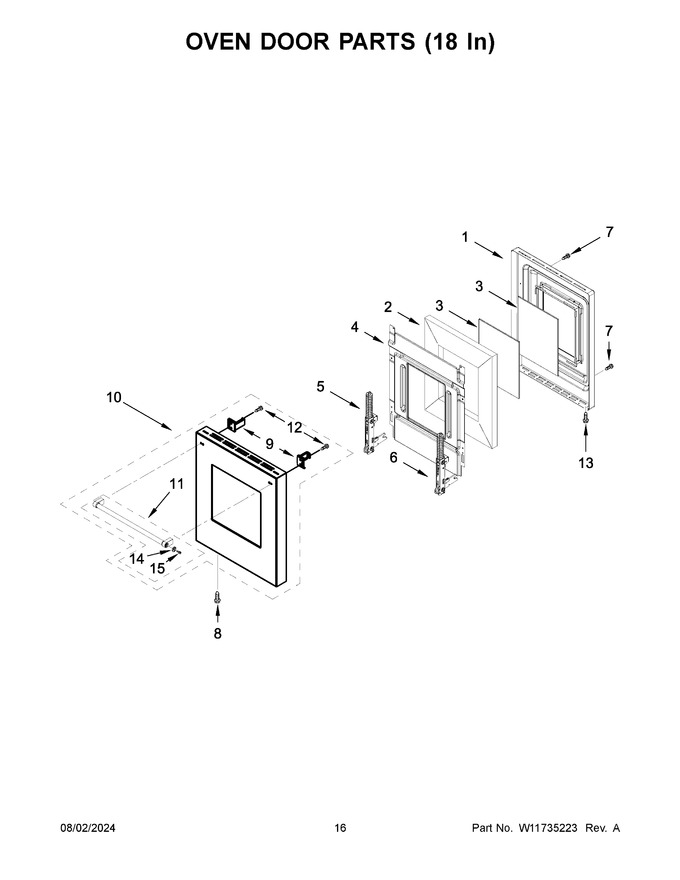

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11318335 | Liner, Door (Replaces: W11036770) |
|
$ 394.33 | |||||
| 2 | W11317950 | Insulation, Door (Replaces: W10884821) |
|
- | |||||
| 3 | W11317951 | Glass, Inner (Replaces: W11036789) |
|
Immediately | $ 167.81 | ||||
| 4 | W11318328 | Retainer, Glass (Replaces: W11194818) |
|
$ 182.64 | |||||
| 5 | W11643896 | Hinge, Door (left) (Replaces: W11390106) |
|
Immediately | $ 207.50 | ||||
| 6 | W11643900 | Hinge, Door (right) (Replaces: W11390125) |
|
Immediately | $ 144.95 | ||||
| 7 | W11712404 | Screw (Replaces: W10898280) |
|
Immediately | $ 14.77 | ||||
| 8 | W10162096 | Screw |
|
$ 21.90 | |||||
| 9 | W11317513 | Bracket, Handle (Replaces: W11197830) |
|
$ 78.81 | |||||
| 10 | W11735966 | Outer Door Assembly (includes Handle) (Replaces: W11712122) |
|
- | |||||
| 11 | W11512758 | Handle Assembly (Replaces: W11362703) |
|
- | |||||
| 12 | WPW10276043 | Screw (Replaces: W10276043) |
|
$ 7.30 | |||||
| 13 | W11193480 | Screw (Replaces: W10607120) |
|
$ 14.72 | |||||
| 14 | W11361074 | Medallion, Handle |
|
- | |||||
| 15 | W10920281 | Screw (Replaces: W10656499) |
|
Immediately | $ 8.95 |
