Chassis Parts

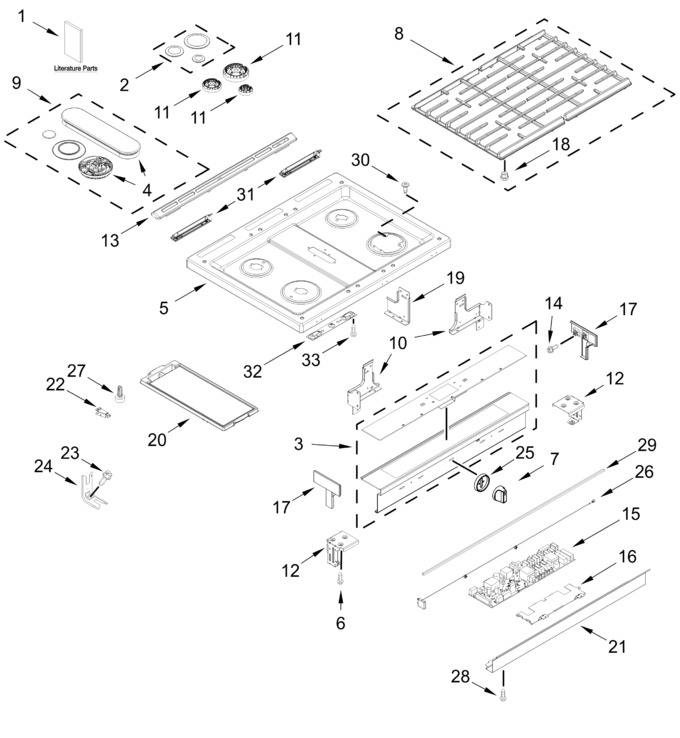

Cooktop Parts


Door Parts


Drawer Parts


Manifold Parts


Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11605764		Caps, Burner (black, Set Of 3)   (Replaces: W11498501)			Immediately	$ 80.80
3	W11339755		Console (stainless)   (Replaces: W11295851)			Immediately	$ 1,083.38
4	W11245289		Spreader, Flame   (Replaces: W10867781)				$ 285.55
5	W11548508		Cooktop (black)   (Replaces: W11511787)				$ 430.63
6	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
7	W11123250		Knob (stainless)   (Replaces: W10906401)			Immediately	$ 82.18
8	W11548766		Grate Kit (black)   (Replaces: W11160332)			Immediately	$ 387.29
9	W11550541		Spreader, Flame Kit (includes Burner Cap)   (Replaces: W11495472)			Immediately	$ 282.11
10	W10867593		Support, Cooktop (left)		Appelez-nous	-
11	W11531096		Flame Spreader   (Replaces: W11352193)				$ 81.92
12	W10828159		Base, Console (left)		Appelez-nous	-
13	W11256338		Trim, Vent (black)   (Replaces: W10577781)				$ 205.56
14	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 14.75
15	W11620582		Control, Electronic   (Replaces: W11543343)				$ 421.60
16	W10908536		Bracket, Control				$ 79.22
17	W10854356		Endcap (stainless, Left)				$ 87.00
18	W11690600		Bumper   (Replaces: W10854253)			Immediately	$ 14.91
19	W10867600		Bracket, Console (center)				$ 81.75
20	W11123246		Griddle   (Replaces: W11043399)				$ 102.52
21	W10899344		Console, Lower Panel (black)				$ 93.79
22	W10162253		Brace, Corner (left)				$ 74.13
23	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
24	W11502257		Bracket, Anti-tip   (Replaces: W11379947)			Immediately	$ 23.03
25	W10906020		Bezel (stainless)				$ 63.84
26	W11583804		Antenna   (Replaces: W11516200)				$ 90.55
27	8016P02260		Glide, Main Top		Appelez-nous	-
28	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
29	W10802441		Gasket, Console And Cooktop   (Replaces: W10612719)			Immediately	$ 22.73
30	W11818021		Screw   (Replaces: W11103318)			Immediately	$ 12.34
31	W10826075		Rear, Hinge-grate				$ 109.95
32	W10879790		Grate Hinge Spacer		Appelez-nous	-
33	WPW10132940		Screw   (Replaces: 3196184)				$ 10.12
	ARI59533660F9AB0B0BC7E501CA04F08592		(right Front, Center)		Appelez-nous	-
	ARI56F7DE44B053A8525A1E81C6052D9B47		(left Front, Left Rear, Right Rear)		Appelez-nous	-
	W11531097		Flame Spreader   (Replaces: W11352195)				$ 81.15
	W10867592		Support, Cooktop (right)		Appelez-nous	-
	W10854360		Endcap (stainless, Right)				$ 81.26
	W10828160		Base, Console (right)		Appelez-nous	-
	W11198972		Harness, Bake And Broil   (Replaces: W10754419)				$ 35.84
	W10580229		Wire, Ground				$ 38.22
	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
	ARIA12C7E5D311C54B1AACBC1820DF34957		(right Front)		Appelez-nous	-
	ARI283693F3486669333C7F1EE938CD8A5B		(right Rear)		Appelez-nous	-
	ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9		(left Rear)		Appelez-nous	-
	ARI7A67B14AEA62F6D2A04BCF7D52CA12EE		(center)		Appelez-nous	-
	ARI76BF577D359F4F7B6AC1C45BB9FB0006		(left Front)		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W10162252		Brace, Corner (right)				$ 78.59
	7111P01760		Clamp, Wire		Appelez-nous	-
	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
	ARI3D761704CB0B4A9014A9F3FE37DAFDBD		(includes Burner Caps)		Appelez-nous	-
	W11565459		Tech Sheet		Appelez-nous	-
	W11498994		Owners Manual		Appelez-nous	-
	W11456871		Harness, Main				$ 183.29
	W11428052		Quick Start Guide		Appelez-nous	-
	W11531098		Flame Spreader   (Replaces: W11352197)				$ 80.72
	W11548764		Spreader, Flame (fish)   (Replaces: W11357364)				$ 161.72
