01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts

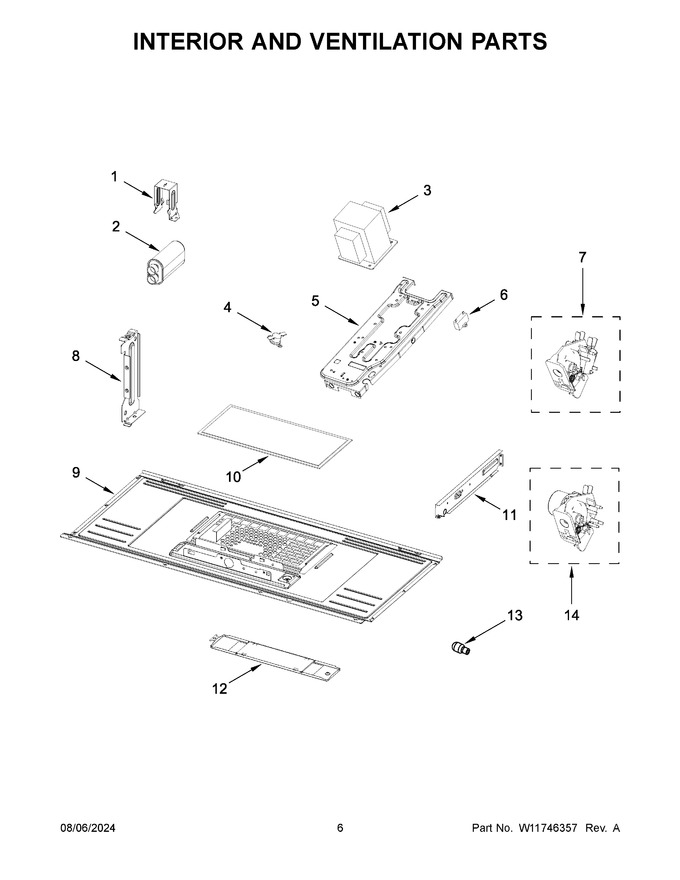

04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10532063 | Bracket, Capacitor |
|
$ 29.69 | |||||
| 2 | 8206562 | Capacitor, High Voltage |
|
Immediately | $ 120.92 | ||||
| 3 | W11485075 | Transformer, High Voltage |
|
$ 166.85 | |||||
| 4 | W11574181 | Thermostat, Cavity (Replaces: W11397274) |
|
Immediately | $ 43.63 | ||||
| 5 | W11520831 | Chassis |
|
Immediately | $ 65.88 | ||||
| 6 | W11405832 | Capacitor, Hood Motor |
|
$ 28.60 | |||||
| 7 | W11685345 | Assembly, Upper Interlock (includes Switches) (Replaces: W11684004) |
|
$ 74.15 | |||||
| 8 | W10313275 | Bracket, Top Cavity |
|
$ 35.62 | |||||
| 9 | W11295401 | Panel, Bottom |
|
$ 134.70 | |||||
| 10 | W11391715 | Filter, Grease (Replaces: W11268912) |
|
Immediately | $ 15.42 | ||||
| 11 | W11295335 | Support, Ntc |
|
- | |||||
| 12 | W11295403 | Cover, Lamp |
|
- | |||||
| 13 | W11520384 | Lamp, Halogen |
|
Immediately | $ 10.41 | ||||
| 14 | W11685346 | Assembly, Lower Interlock (includes Switches) (Replaces: W11684005) |
|
$ 74.15 |
