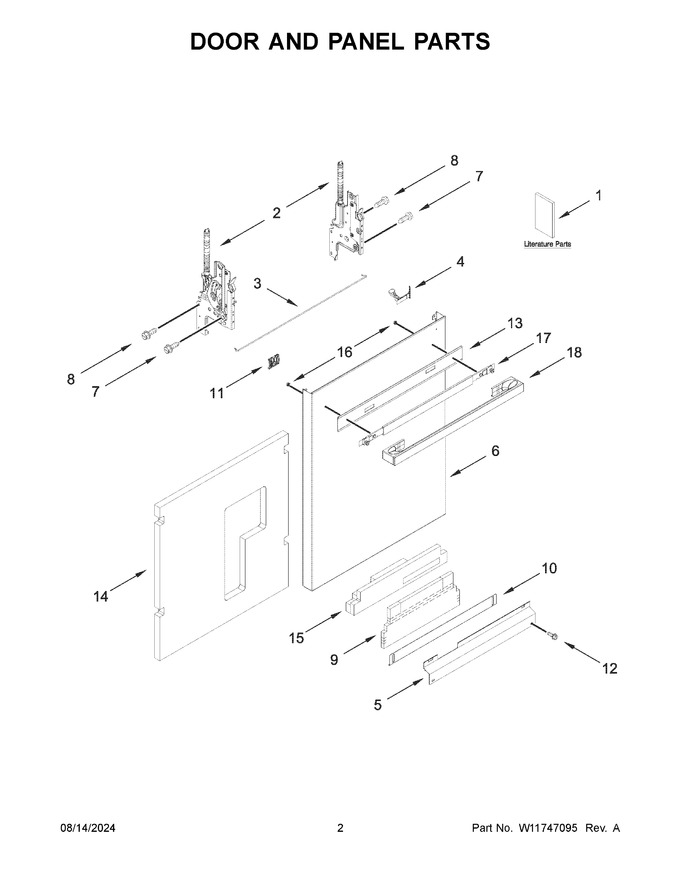

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11323304		Owners Manual		Appelez-nous	-
2	W11323124		Arm, Hinge (left)				$ 210.81
3	W11377160		Cross Brace, Door				$ 33.36
4	W11102920		Light Pipe				$ 68.17
5	W11545318		Access Panel (black)   (Replaces: W11108979)			Immediately	$ 27.90
6	W11579514		Panel, Front (includes Items 4 &11) (stainless)   (Replaces: W11509775)				$ 422.01
7	W11676450		Screw   (Replaces: 3400000)				$ 14.76
8	WPW10309090		Screw   (Replaces: W11364953)			Immediately	$ 76.86
9	W11573704		Insulation, Single Layer   (Replaces: W11038694)			Immediately	$ 29.98
10	W11579528		Toe Panel (black)   (Replaces: W11467733)			Immediately	$ 32.90
11	W10692757		Barrel Nut, Front Panel				$ 16.01
12	W11551775		Screw, Black   (Replaces: W11438978)			Immediately	$ 15.43
13	W11229577		Channel, Handle Reinforcement				$ 104.52
14	W11778318		Insulation, Front Panel   (Replaces: W10919859)				$ 23.86
15	W11573700		Insulation, Multi-layer   (Replaces: W10919858)			Immediately	$ 44.89
16	WP776338		Locknut   (Replaces: 776338)				$ 20.32
17	W11505239		Brace, Lower   (Replaces: W11190791)				$ 394.98
18	W11190789		Handle (stainless)				$ 624.67
1A	W11366144		Tech Sheet		Appelez-nous	-
1B	W11655300		Energy Guide		Appelez-nous	-
2A	W11323123		Arm, Hinge (right)				$ 210.81
