SELECT A DIAGRAM

01 - Cover Sheet

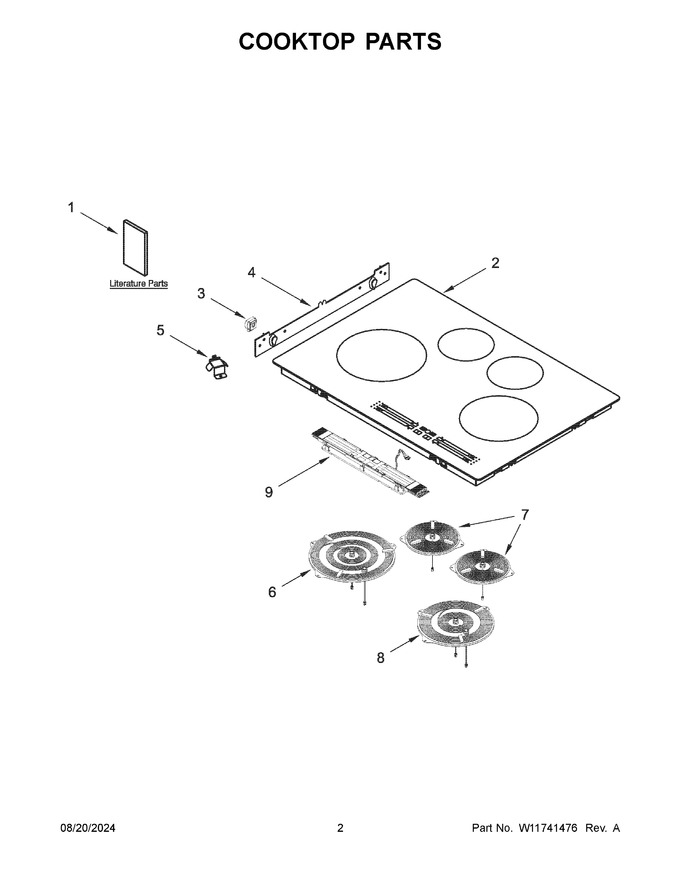

02 - Cooktop Parts


03 - Interior Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11362912		Installation Instructions		Appelez-nous	-
2	W11495627		Cooktop, Glass   (Replaces: W11389881)			Immediately	$ 644.63
3	W11495019		Cooktop Spring   (Replaces: W11279477)			Immediately	$ 36.23
4	W11495626		Cooktop Support Bracket   (Replaces: W11279478)			Immediately	$ 77.03
5	W11302457		Filter Support		Appelez-nous	-
6	W11595236		Element (6.25 Inch) (left Front)   (Replaces: W11429954)				$ 311.39
7	W11560534		Element (6 Inch) (left Rear And Right Rear)   (Replaces: W11429950)			Immediately	$ 178.66
8	W11586461		Element (8 Inch) (right Front)   (Replaces: W11429952)			Immediately	$ 202.55
9	W11595237		Hmi Board   (Replaces: W11524571)				$ 370.85
1A	W11245478		Instructions, Undercounter Installation		Appelez-nous	-
1B	W11362923		Owner's Manual		Appelez-nous	-
1C	W11362960		Tech Sheet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
