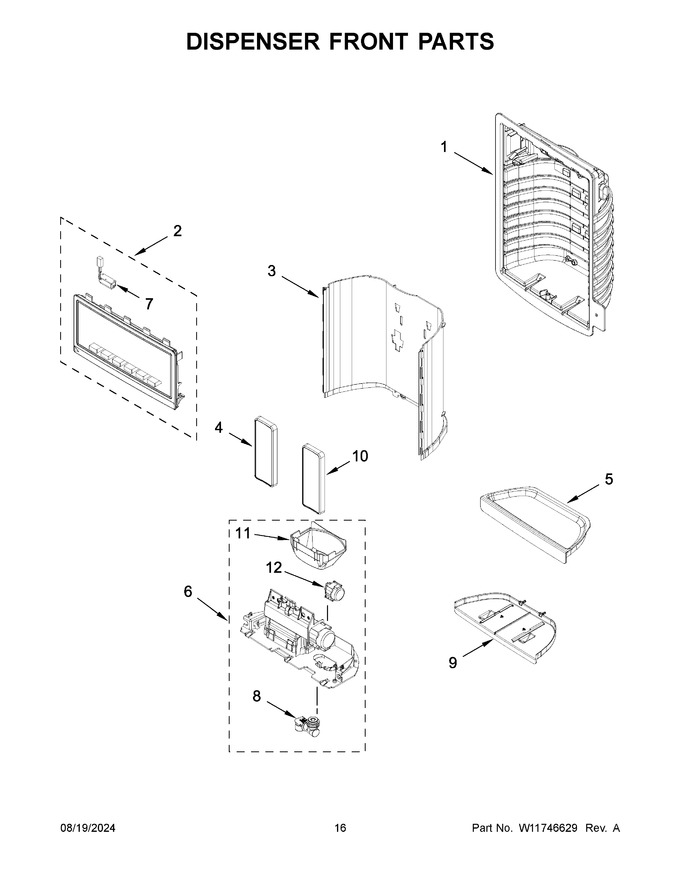

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI0820F7799426DB23CC858392159B72FE | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | W11766558 | Assembly, Stealth User Interface (Replaces: W11600495) |
|
$ 703.49 | |||||
| 3 | W11045976 | Wall, Dispenser False (black) |
|
$ 43.18 | |||||
| 4 | W10368729 | Assembly, Ice Pad (black) (Replaces: W10334798) |
|
$ 308.78 | |||||
| 5 | W11045971 | Tray, Dispenser (black) |
|
$ 65.90 | |||||
| 6 | WPW10353552 | Assembly, Separator (includes Spigot And Ice Guide) (Replaces: W10353552) |
|
$ 205.88 | |||||
| 7 | W11290115 | Assembly, Led (Replaces: W10238083) |
|
$ 84.45 | |||||
| 8 | W11227371 | Assembly, Spigot Body (Replaces: 2316647) |
|
$ 136.38 | |||||
| 9 | W10267861 | Tray, Dispenser Slide (black) |
|
$ 74.39 | |||||
| 10 | W10368729 | Assembly, Water Pad (black) (Replaces: W10334822) |
|
$ 308.78 | |||||
| 11 | WPW10435760 | Guide, Ice (Replaces: W10339578) |
|
Immediately | $ 23.94 | ||||
| 12 | WPW10205979 | Motor, Ice Door (Replaces: W10205979) |
|
Immediately | $ 107.60 |
