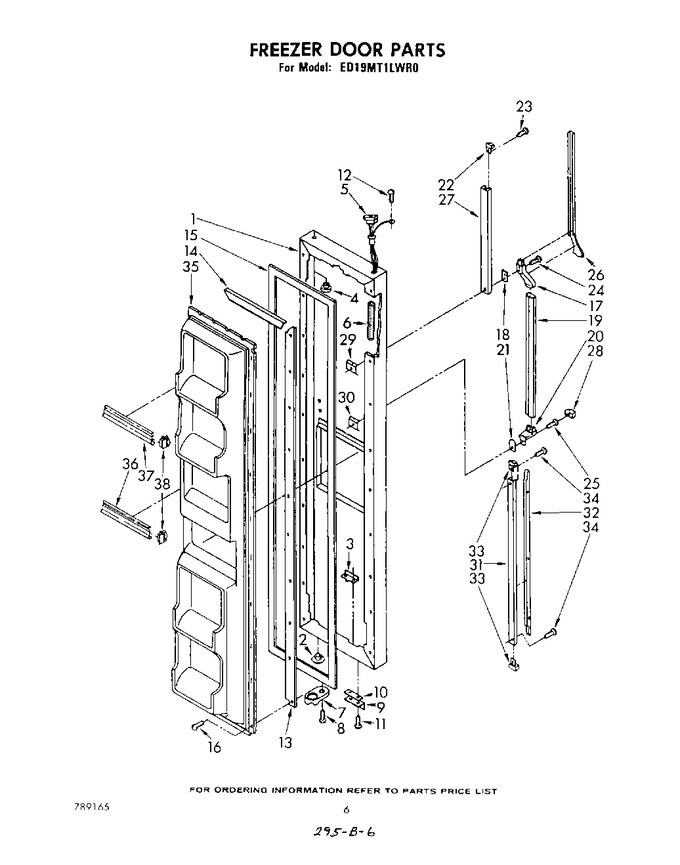

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	943204		Freezer, Door Panel (coffee)		Appelez-nous	-
1	1100386		Freezer, Door Panel (platinum)		Appelez-nous	-
1	943205		Freezer, Door Panel (golden Harvest)		Appelez-nous	-
1	943203		Freezer, Door Panel (white)		Appelez-nous	-
1	943206		Freezer, Door Panel (new Avocado)		Appelez-nous	-
1	943207		Freezer, Door Panel (almond)		Appelez-nous	-
1	1100385		Freezer, Door Panel (toast)		Appelez-nous	-
2	534927		Hole Plug		Appelez-nous	-
3	988402		Tap Plate		Appelez-nous	-
4	509929		Cap, Hinge		Appelez-nous	-
5	938378		Wire, Assembly Cross Over		Appelez-nous	-
6	991415		Tube, Wiring		Appelez-nous	-
7	4318165		Door Closer, Cam   (Replaces: 986758)			Immediately	$ 29.74
8	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 8.40
9	988420		Bracket, Door Stop		Appelez-nous	-
10	988421		Shim		Appelez-nous	-
11	488930		Screw (repair)		Appelez-nous	-
11	488549		Screw, 8 X 5/8		Appelez-nous	-
12	WP488234		Screw, 8-32 X 5/32   (Replaces: 488889)				$ 7.08
13	836120		Retainer, Gasket (side) (2)		Appelez-nous	-
14	836122		Retainer, Gasket Top & Bottom (2)		Appelez-nous	-
15	2188405A		Door Gasket, Magnetic   (Replaces: 943221)				$ 368.63
15	2188405A		Door Gasket, Magnetic (for Platinum Model Only)   (Replaces: 939566)				$ 368.63
16	WP489069		Screw, 7 X 1/2   (Replaces: 489089)			Immediately	$ 8.40
16	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
17	935103		Center End Cap, Handle		Appelez-nous	-
18	935075		Shim, End Center		Appelez-nous	-
19	943288		Handle Center (golden Harvest)		Appelez-nous	-
19	1100394		Handle Center (platinum)		Appelez-nous	-
19	1100393		Handle Center (toast)		Appelez-nous	-
19	943289		Handle Center (almond)		Appelez-nous	-
19	943286		Handle Center (white & Coffee)		Appelez-nous	-
19	943287		Handle Center (new Avocado)		Appelez-nous	-
20	935105		End, Cap Handle				$ 32.80
21	935076		Shim, Handle End		Appelez-nous	-
22	941259		End Cap		Appelez-nous	-
23	489075		Screw, 8-32 X 5/8		Appelez-nous	-
24	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
25	WP488729		Screw, 8 X 1/2   (Replaces: 486993)			Immediately	$ 8.28
26	941955		Insert, Handle		Appelez-nous	-
27	941954		Retainer Insert		Appelez-nous	-
28	987873		End Cap Cover		Appelez-nous	-
29	941242		Screw Anchor		Appelez-nous	-
30	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88
31	935880		Retainer, Insert		Appelez-nous	-
32	935890		Insert, Extension		Appelez-nous	-
33	935106		End Cap, Retainer		Appelez-nous	-
34	488915		Screw, 6-32 X 1/2		Appelez-nous	-
35	943100		Interior, Door Panel		Appelez-nous	-
35	1101209		Interior Door Panel (for Platinum Model Only)		Appelez-nous	-
36	943279		Trim, Door Shelf		Appelez-nous	-
37	943278		Trim, Door Shelf		Appelez-nous	-
38	839904		Retainer, Door Trim (for Platinum Model Only)				$ 5.65
38	943125		Retainer, Door Trim		Appelez-nous	-
