SELECT A DIAGRAM

02 - Cabinet


03 - Refrigerator Door


04 - Freezer Door


05 - Door, Tilt Ice


06 - Airflow And Control , Lit/optional


07 - Shelf


08 - Unit


09 - Icemaker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	488474		Screw, Ground		Appelez-nous	-
3	943480		Condenser & Precooler		Appelez-nous	-
4	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
5	510716		Clamp (2)		Appelez-nous	-
6	548744		Clip (2)		Appelez-nous	-
7	943320		Overload Spring		Appelez-nous	-
8	943322		Strap, Cover		Appelez-nous	-
9	1105055		Cover		Appelez-nous	-
10	549948		Box, Junction		Appelez-nous	-
11	945585		Overload		Appelez-nous	-
12	WP488729		Screw, 8 X 1/2   (Replaces: 486993)			Immediately	$ 8.28
14	945507		Relay		Appelez-nous	-
16	876811		Screw, 1/4-28 X 1 (4)   (Replaces: 489116)				$ 7.79
17	482981		Compressor (includes Items 51, 52, 53, 54, 55, 57, 59, & 66) (also Order 876765 Tube Kit)		Appelez-nous	-
18	876811		Grommet (4)   (Replaces: 1108038)				$ 7.79
19	303776		Screw   (Replaces: 488879)		Appelez-nous	-
21	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488197)				$ 22.22
22	510769		Dampener (2)		Appelez-nous	-
23	945503		Exchanger, Heat		Appelez-nous	-
25	548738		Clamp (4)		Appelez-nous	-
26	943447		Grommet (4)		Appelez-nous	-
27	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
28	944454		Grommet		Appelez-nous	-
29	WP486692		Nut, Speed   (Replaces: 486692)				$ 8.43
30	850156		Guard, Fan		Appelez-nous	-
31	945577		Evaporator		Appelez-nous	-
32	513584		Clamp		Appelez-nous	-
33	WP4387489		Bimetal, Defrost   (Replaces: 934426)				$ 108.99
34	WP549433		Heater, Defrost   (Replaces: 934445)				$ 175.73
35	227991		Wire Connector		Appelez-nous	-
36	850626		Cord, Service		Appelez-nous	-
37	989524		Blade, Fan		Appelez-nous	-
37	851732		Blade, Fan (alternate)		Appelez-nous	-
40	681390		Screw, 8-36 X 3/8 (3)   (Replaces: 489019)				$ 13.71
42	945457		Frame		Appelez-nous	-
44	833697		Motor, Fan   (Replaces: 946539)			Immediately	$ 88.15
45	548662		Rail, Front		Appelez-nous	-
46	489340		Screw, 5/16-18 X 5/8 (4)   (Replaces: 488683)		Appelez-nous	-
47	488624		Screw, 8 X 3/8		Appelez-nous	-
48	548695		Bracket, Fan Motor		Appelez-nous	-
49	850764		Baffle, Air		Appelez-nous	-
50	548745		Clip, Wire (2)		Appelez-nous	-
51	WP2262181		Relay   (Replaces: 1108143)				$ 128.78
52	483037		Overload		Appelez-nous	-
53	482996		Capacitor		Appelez-nous	-
54	1105015		Cover, Terminal		Appelez-nous	-
55	938384		Strap		Appelez-nous	-
56	488454		Screw, 1/4-28 X 1/2 (2)		Appelez-nous	-
57	489142		Nut		Appelez-nous	-
58	652985		Baffle, Air Evaporator (2)		Appelez-nous	-
59	489143		Washer		Appelez-nous	-
60	W10843121		Dryer   (Replaces: 945424)			Immediately	$ 57.13
61	WPW10662129		Running, Capacitor   (Replaces: 1114291)			Immediately	$ 58.86
62	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488197)				$ 22.22
63	509812		Screw Grommet		Appelez-nous	-
64	851095		Strap		Appelez-nous	-
65	549193		Clamp				$ 14.06
66	1114190		Overload Spring		Appelez-nous	-
68	842041		Tray, Evaporating				$ 64.92
78	842436		Support, Evaporator		Appelez-nous	-
79	WP681414		Screw, 10-12 X 3/8   (Replaces: 489049)			Immediately	$ 8.47
81	489050		Screw, 8-15 X 3/8				$ 692.56
83	548508		Clamp, Drier		Appelez-nous	-
94	945572		Pan, Drip		Appelez-nous	-
95	549435		Shield, Heat (2)		Appelez-nous	-
96	978026		Valve, Access (5/16``)			Immediately	$ 134.49
96	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
96	978028		Valve, Access (1/2)		Appelez-nous	-
96	978029		Valve Access (5/8``)				$ 93.85
96	978030		Valve, Access (3/4``)				$ 137.25
96	876764		Valve, Access(3/16``)			Immediately	$ 95.92
96	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
96	549419		Clamp, Heater (4)		Appelez-nous	-

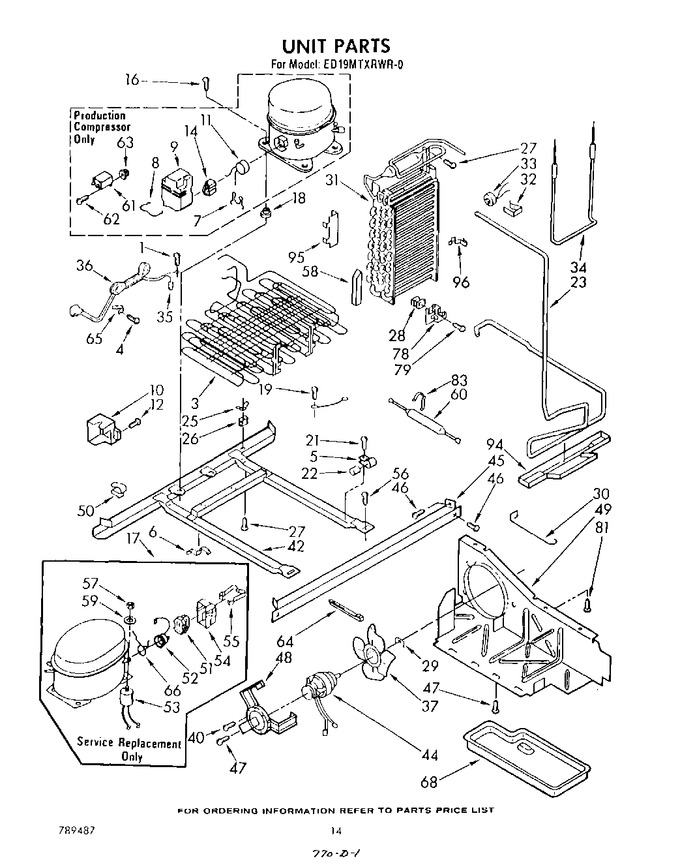

    View Diagram in Separate Window       Print Part List
