View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Cabinet/front/controls

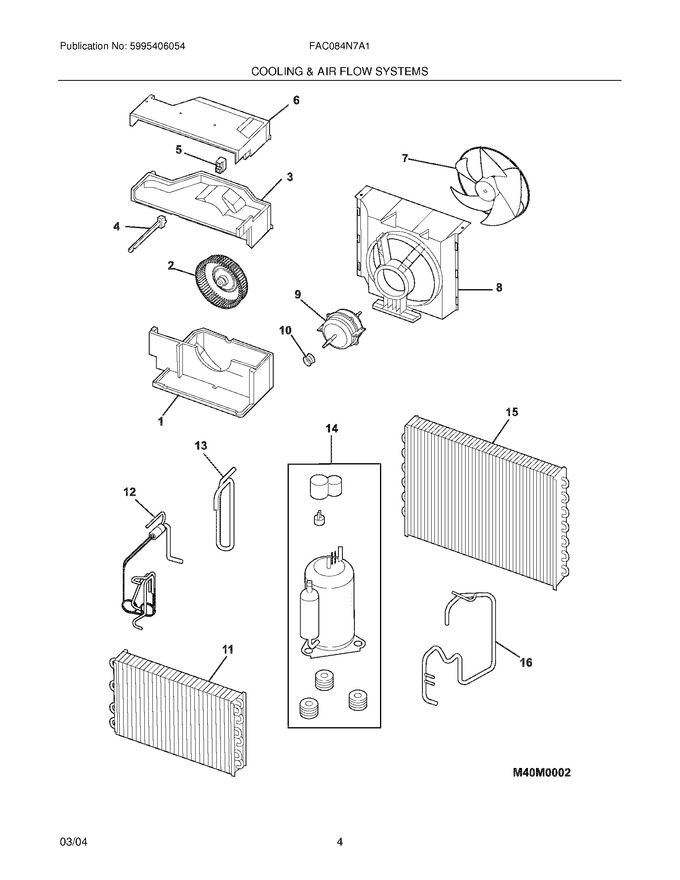

05 - Cooling & Air Flow Systems
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304436556 | Scroll,blower Housing ,bottom ,w/drain Tray |
|
- | |||||
| 3 | 5304436559 | Scroll,blower Housing ,top |
|
- | |||||
| 4 | 5304436558 | Door,fresh Air Vent ,with Lever |
|
- | |||||
| 5 | 5304436564 | Guide,vent Door/lever |
|
- | |||||
| 6 | 5304436565 | Cover,blower Scroll ,top |
|
- | |||||
| 10 | 5304436560 | Seal,fan Motor ,rubber Ring ,water Proof |
|
- | |||||
| F11 | 5304436567 | Evaporator |
|
- | |||||
| F12 | 5304436583 | Capillary Tube,assy W/strainer |
|
- | |||||
| F13 | 5304436577 | Discharge Tube |
|
- | |||||
| F14 | 5304437077 | Compressor Assyincludes Overload, Wiring Cover, Andmounting Grommets |
|
- | |||||
| F15 | 5304436573 | Condenser |
|
- | |||||
| F16 | 5304437100 | Suction Tube |
|
- | |||||
| F2 | 5304436557 | Blower Wheel,centrifugal Fan |
|
- | |||||
| F7 | 5304436563 | Fan Blade,propeller ,axial Flow |
|
$ 31.50 | |||||
| F8 | 5304436562 | Shroud,fan Housing |
|
$ 103.29 | |||||
| F9 | 5304436568 | Motor,fan |
|
- |
