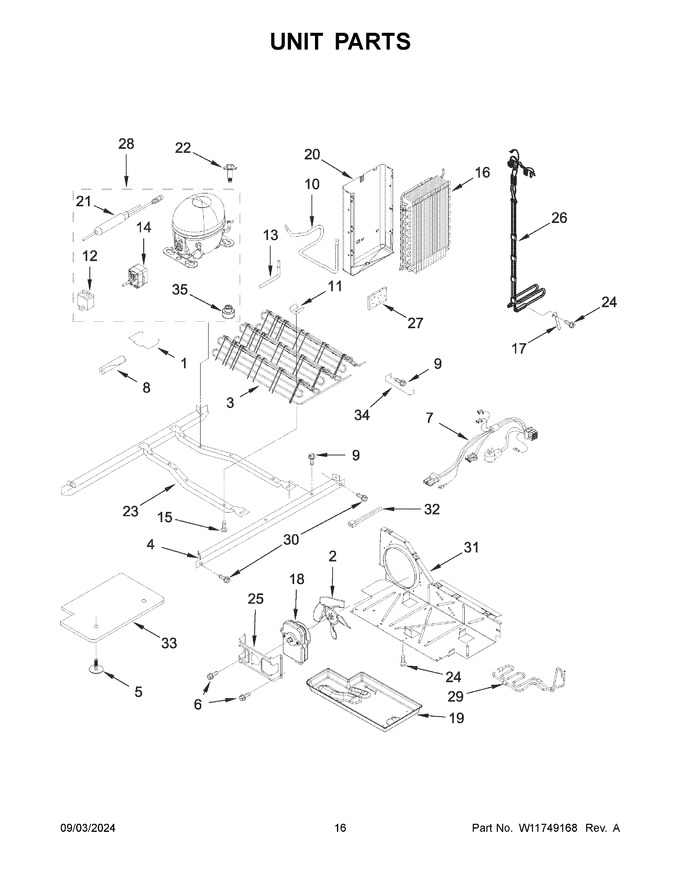

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11577799 | Strap, Bale (Replaces: W11495051) |
|
- | |||||
| 2 | W11458267 | Blade, Fan (Replaces: 2225834) |
|
Immediately | $ 23.99 | ||||
| 3 | W11632924 | Assembly, Condenser (also Order The Following Lokring⢠Parts) (Replaces: W11553540) |
|
Immediately | $ 226.24 | ||||
| 4 | W10905882 | Rail, Unit Mounting |
|
$ 117.48 | |||||
| 5 | 489396 | Clip |
|
$ 10.72 | |||||
| 6 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 10.57 | |||||
| 7 | W11673314 | Harness, Unit (includes Power Cord) (Replaces: W11229008) |
|
$ 100.56 | |||||
| 8 | W11751592 | Sleeve (Replaces: W10303521) |
|
Immediately | $ 20.30 | ||||
| 9 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.47 | |||||
| 10 | W11506458 | Tube, Suction |
|
$ 41.56 | |||||
| 11 | W10683556 | Clip, Condenser (Replaces: 2311725) |
|
$ 18.46 | |||||
| 12 | WPW10662129 | Capacitor (Replaces: W10590083) |
|
Immediately | $ 58.86 | ||||
| 13 | 2325479 | Tube, Process |
|
- | |||||
| 14 | W11547180 | Device, Combination Start (start Relay And Overload) (Replaces: W11359381) |
|
Immediately | $ 37.83 | ||||
| 15 | W11544659 | Screw (Replaces: 8281232) |
|
$ 13.67 | |||||
| 16 | W11546605 | Evaporator (also Order The Following Lokring⢠Parts) (Replaces: W11357917) |
|
Immediately | $ 241.27 | ||||
| 17 | W11611126 | Heat Probe (Replaces: W11399989) |
|
$ 22.06 | |||||
| 18 | W11578915 | Motor, Condenser Fan (Replaces: W11546724) |
|
Immediately | $ 71.42 | ||||
| 19 | W11678304 | Tray, Evaporator (Replaces: W11562498) |
|
- | |||||
| 20 | W11546608 | Assembly, Heat Shield And Drain Pan (Replaces: W11400739) |
|
- | |||||
| 21 | W11109499 | Drier (service Drier Without Dye) (also Order The Following Lokring⢠Parts) (Replaces: W10805035) |
|
Immediately | $ 39.12 | ||||
| 22 | W11417341 | Screw (Replaces: W10476309) |
|
$ 13.40 | |||||
| 23 | W10905880 | Frame, Unit Mounting (includes Unit Mounting Rail) |
|
$ 131.22 | |||||
| 24 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.83 | ||||
| 25 | WP2181929 | Bracket, Fan Mounting (Replaces: 2181929) |
|
$ 12.31 | |||||
| 26 | W11650659 | Assembly, Defrost Heater And Evaporator Fan Harness (includes Thermal Fuse) (Replaces: W11573115) |
|
Immediately | $ 147.09 | ||||
| 27 | W11553819 | Insulation, Sound Deadening (Replaces: 2169104) |
|
Immediately | $ 14.07 | ||||
| 28 | W11580057 | Compressor (also Order The Following Lokring⢠Parts) (Replaces: W11663223) |
|
Immediately | $ 381.10 | ||||
| 29 | W11678305 | Assembly, Precooler Formed (Replaces: W11442858) |
|
$ 63.46 | |||||
| 30 | 489340 | Bolt |
|
- | |||||
| 31 | W10896764 | Baffle, Air |
|
$ 96.38 | |||||
| 32 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 7.90 | |||||
| 33 | W10905883 | Assembly, Unit Cover (bottom) |
|
- | |||||
| 34 | 1105612 | Guard, Fan |
|
$ 40.58 | |||||
| 35 | W11678963 | Grommet, Compressor (Replaces: W10806346) |
|
$ 8.10 | |||||
| 16A | W11504449 | 4/2 Nr Al 00 (capillary Tube To Evaporator) |
|
Immediately | $ 35.66 | ||||
| 16B | W11506619 | 8 Nk Ms 00 (process Tube To Compressor) |
|
Immediately | $ 24.65 | ||||
| 21A | W11504433 | 6/4 Nr Ms 00 (heat Loop To Drier) |
|
Immediately | $ 28.00 | ||||
| 21B | W11504447 | 5/1.8 Nr Ms 00 (capillary Tube To Drier) |
|
Immediately | $ 41.81 | ||||
| 28A | W11504415 | 8.5/8 Nr Ms 00 (suction Tube To Compressor) |
|
Immediately | $ 24.66 | ||||
| 28B | W11504431 | 7/5 Nr Ms 00 (high Pressure Side To Compressor) |
|
Immediately | $ 25.84 | ||||
| 28C | W11506619 | 8 Nk Ms 00 (process Tube To Compressor) |
|
Immediately | $ 24.65 | ||||
| 3A | W11506623 | 5 Nk Ms 00 (suction Line To Condenser) |
|
Immediately | $ 20.95 | ||||
| 3B | W11504445 | 5/4 Nr Ms 00 (high Side To Condenser) |
|
Immediately | $ 27.54 | ||||
| NI | ARI294D3EED7ACB744660E31C30FDB1A5CE | Refrigerant Charge 64 Grams (r600a) |
|
- |
